Fiberglass Filter Cloth With PTFE Membrane For Woven Fiberglass Filter Bags With Ultra Low Emission

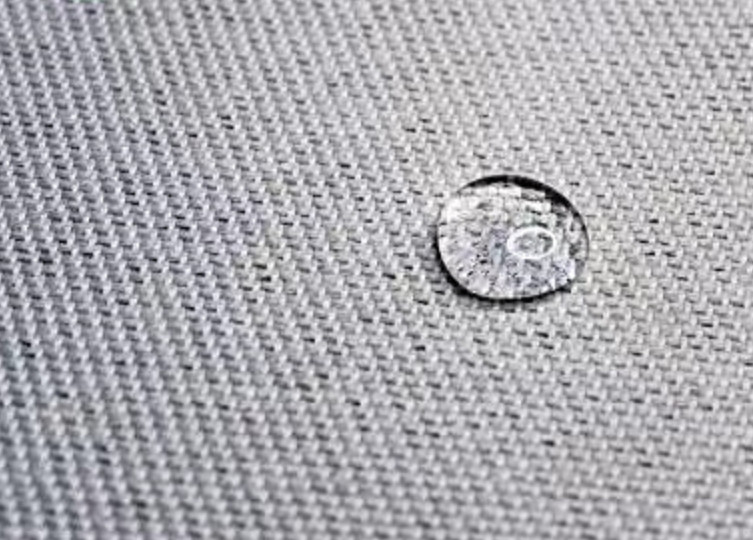

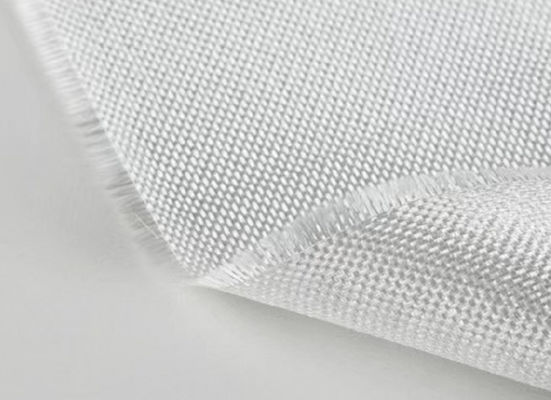

Fiberglass filter cloth with PTFE membrane is a high-efficiency filter material which formed by
laminated e-PTFE microporous membrane on fiberglass filter cloth.
PRODUCT SPECIFICATION SHEETS
| Item | Finish |
Density (thread/cm) |
Gram Weight (gsm) |
Weave Pattern |
Tensile Strength (N/25mm) |
Air Permeability (cm3/cm2/s@127pa) |
|
| Warp | Weft | ||||||
| HD-01PF | PTFE Finished + Membrane | 19×16 | 750±25 | Double Twill | ≥2400 | ≥2000 | 2-5 |
| HD-01NF | Acid-resistant Finished + Membrane | 19×16 | 750±25 | Double Twill | ≥2400 | ≥2000 | 2-5 |
| HD-04PF | PTFE Finished + Membrane | 19×16 | 650±20 | Double Twill | ≥2400 | ≥1800 | 2-5 |
| HD-02PF | PTFE Finished + Membrane | 18×10 | 500±15 | 1/3 Twill | ≥2000 | ≥1200 | 2-5 |
| HD-02NF | Acid-resistant Finished + Membrane | 18×10 | 500±15 | 1/3 Twill | ≥2000 | ≥1200 | 2-5 |
| HD-12LF | Acid-resistant Finished + Membrane | 18×10 | 490±15 | 1/3 Twill | ≥2000 | ≥1200 | 2-5 |
| HD-03PF | PTFE Finished + Membrane | 21×12 | 340±15 | 1/3 Twill | ≥1400 | ≥900 | 2-5 |
| HD-03NF | Acid-resistant Finished + Membrane | 21×12 | 340±15 | 1/3 Twill | ≥1300 | ≥800 | 2-5 |
| AET-WFG-15XF | Graphite Finished + Membrane | 21×19 | 550±15 | 2/5 Satin | ≥2000 | ≥2000 | 2-5 |
