Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-WOVFFC

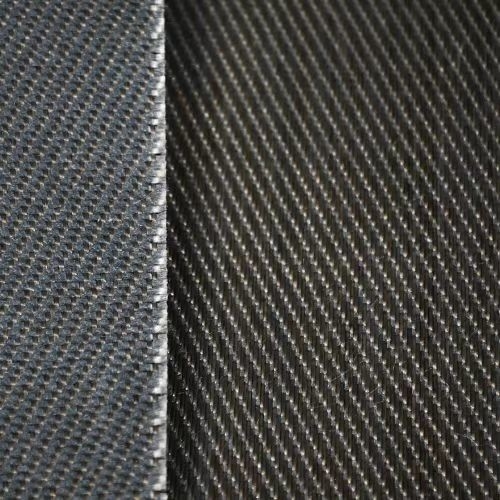

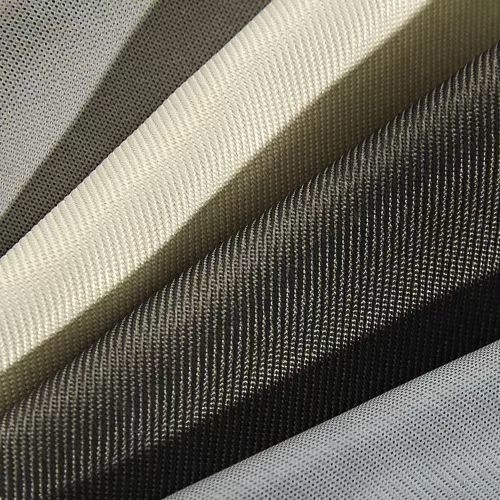

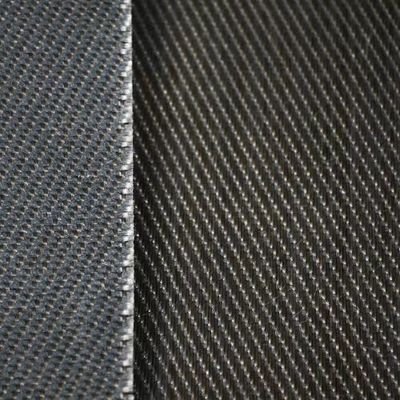

Fiberglass Texturized Filter Cloth For Woven Fiberglass Filter Bags
Fiberglass texturized filter cloth is made by fiberglass woven cloth with chemical treatment. There are PTFE, AR, SGT treatment. These kinds of cloth can be used to laminated or directly sewing filter bag.
PRODUCT SPECIFICATION SHEETS
| Item | Finish |
Density (thread/cm) |
Gram Weight (gsm) |
Weave Pattern |
Tensile Strength (N/25mm) |
Air Permeability (cm3/cm2/s@127pa) |
|
| Warp | Weft | ||||||
| HD-01P | PTFE Finished | 19×16 | 750±25 | Double Twill | ≥2400 | ≥2000 | 15-30 |
| HD-01N | Acid-resistant Finished | 19×16 | 750±25 | Double Twill | ≥2400 | ≥2000 | 15-30 |
| HD-01M | Acid-resistant Finished | 19×16 | 730±25 | Double Twill | ≥2400 | ≥2000 | 15-30 |
| HD-04P | PTFE Finished | 19×16 | 650±20 | Double Twill | ≥2400 | ≥1800 | 15-30 |
| HD-02P | PTFE Finished | 18×10 | 500±15 | 1/3 Twill | ≥2000 | ≥1200 | 15-30 |
| HD-02S | PTFE, Graphite, Silicone Finished | 18×10 | 470±15 | 1/3 Twill | ≥2000 | ≥1000 | 15-30 |
| HD-02N | Acid-resistant Finished | 18×10 | 500±15 | 1/3 Twill | ≥2000 | ≥1200 | 15-30 |
| HD-02M | Acid-resistant Finished | 18×10 | 480±15 | 1/3 Twill | ≥2000 | ≥1200 | 15-30 |
| HD-03P | PTFE Finished | 21×12 | 340±15 | 1/3 Twill | ≥1400 | ≥900 | 15-30 |
| AET-WFG-03N | Acid-resistant Finished | 21×12 | 340±15 | 1/3 Twill | ≥1400 | ≥900 | 15-30 |
| AET-WFG-03M | Acid-resistant Finished | 21×12 | 325±15 | 1/3 Twill | ≥1400 | ≥900 | 15-30 |
