P84 FMS Composite Glass Fiber Filter Media 1000gsm For Air Filter Bag

  • P84 FMS Composite Glass Fiber Filter Media 1000gsm For Air Filter Bag
  • P84 FMS Composite Glass Fiber Filter Media 1000gsm For Air Filter Bag
Place of Origin CN
Brand Name HUADING
Certification ISO9001:2015
Model Number HD-FMSFC
Minimum Order Quantity 100 Square meter
Price Negotiable
Packaging Details Polybag
Delivery Time 10-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 200000 Square meter per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fiberglass; P84; Polyimide Technology Nonwoven
Weight 800gsm - 1000gsm Width Max 220cm
Filter Type Pulse Jet; Reverse Application Industry Cement Plant; Steel Plant; Power Plant; Waste Incineration; Carbon Black
High Light

P84 Glass Fiber Filter Media

,

FMS Glass Fiber Filter Media

,

Woven Glass Fibre Cloth 1000gsm
Leave a Message
Product Description

Fiberglass P84 Composite FMS Needle Felt for Air Filter Bag 900gsm

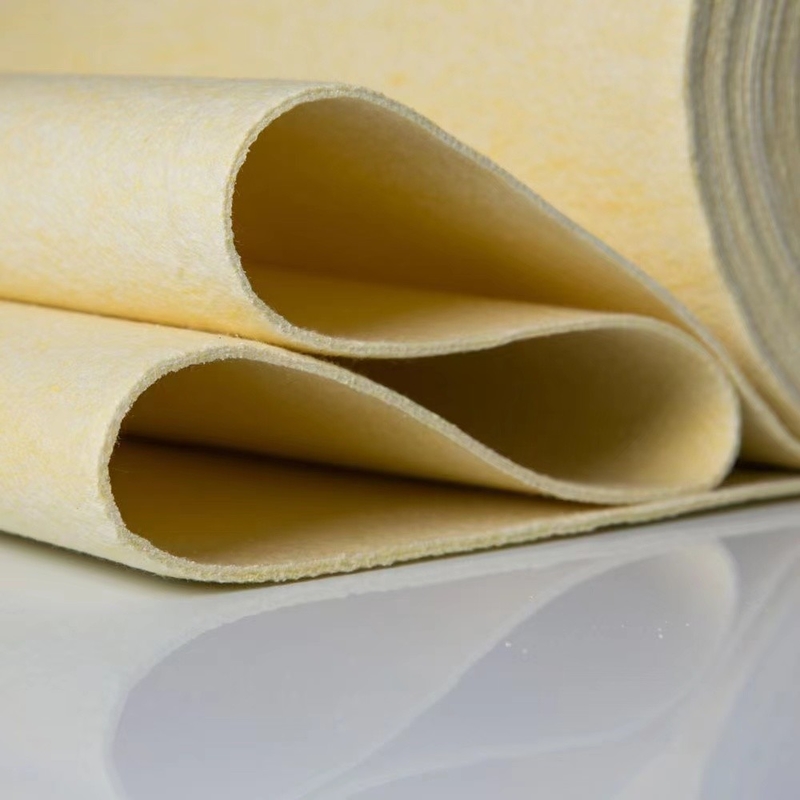

P84 FMS Composite Glass Fiber Filter Media 1000gsm For Air Filter Bag 0



Quick Detail:




** weight: 800-1000g/m²
** thickness: 2.5mm
** working temperature: 260ºC
** high filtration efficiency
** good filtration rating
** good air-permeability
** three-dimensional filter layer, porosity



Description:



FMS filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.





Specifications:



The performance of several widely used products is as following:

Type

Item

FMS9806

High temperature type (For blast furnace gas)

 FMS9807 Common type FMS9808 Anti-stron gacid FMS9809 Anti-high temperature FMS9810 Common temperature
Weight (g/m2) >800 >800 >800 >800 >800
Thickness (mm) 2.4~3.0 2.4~3.0 2.4~3.0 2.5 2.1

(m2m2/min)

Air permeability

 8~15 8~15 8~15 8~15 8~15

Tensile strength

(N/5 20cm)

 Warp >1800 >1800 >1800 >1800 >2000
Weft >1800 >1800 >1800 >1800 >2000
Tensile Elongation (%) Warp <10 <10 <10 <10 <10
Weft <10 <10 <10 <10 <10
Working Temperature 260 240 220 400 150
Short time Working temperature(°C) 300 260 280 450 170
Filter velocity (m/min) 0.5~1.5 0.8~1.2 0.8~1.2 0.8~1.2 0.8~1.2
Anti-acid Excellent Excellent Excellent Excellent Excellent
Anti-alkali Medial Medial Excellent Medial Medial
Anti-abrasion Medial Medial Excellent Medial Excellent
The stability of water solution Medial Medial Excellent Medial Medial
Finishing treatment treatment






Item Unit Parameter
Material Face:glassfiber mix P84 Scrim:GL
Grammas Per Square Meter g/m2 850±5%
Thickness mm 2.0±0.2
Air Permeability(200Pa) L/dm2.min 200~250
  Cont ℃ 260
Temperature Resistance Peaks 280
  Warp N/50*200mm ≥2800
Minimum Breaking Strength Weft ≥2800
  Warp % ≤10
Elongation at Break Weft ≤10
Surface Design Treatment Singeing,Calendering,Heat-set,PTFE treatment
Using Scope Cement klin head and tail ,Steel,Blast furnace gas



Notices:



FMS needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance,it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower.





Applications:



Chemical plant Cement plant

Steel iron plant Melting plant

Carbon black plant Electricity Industry

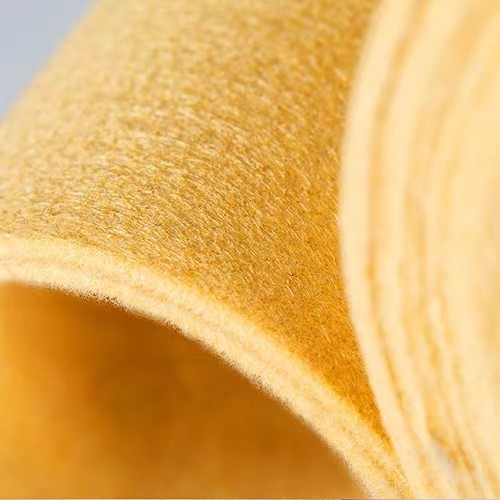

P84 FMS Composite Glass Fiber Filter Media 1000gsm For Air Filter Bag 1



Others:



We can supply following non-woven filter fabric:
1) Normal temperature resistant needle punched felt (PP, PET)
2) High temperature resistant needle punched felt (PPS, Fiberglass, P84, FMS)
3) Antistatic felt:
A) Blended polyester anti-static needle punched felt
B) Basic scrim anti-static needle punched felt
C) Blended polyester anti-static needle punched felt with anti-static basic scrim
4) Water and Oil Repellent Felt (PET)
5) PTFE Coated Felt(PP+PTFE, PET+PTFE)
6) Liquid Filtration Needle Punched Felt (PP,PET)

For more details,please contact me freely.
