Product Details:
Place of Origin: CN
Brand Name: HUADING
Certification: ISO9001:2015
Model Number: HD-FMSFC
Payment & Shipping Terms:
Minimum Order Quantity: 100 Square meter
Price: Negotiable
Packaging Details: Polybag
Delivery Time: 10-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 Square meter per Month

P84 Polyimide High Temperature Fiberglass Fabric Woven 800gsm Aramid FMS

Description
Material: Fiberglass; P84; Polyimide; Aramid Technology: Nonwoven
Weight: 800gsm - 1000gsm Width: Max 220cm
Filter Type: Pulse Jet; Reverse Application Industry: Cement Plant; Steel Plant; Power Plant; Waste Incineration; Carbon Black
High Light:

P84 High Temperature Fiberglass Fabric

,

Polyimide High Temperature Fiberglass Fabric

,

Glass Fiber Woven Fabric 800gsm

Compound Glassfiber P84 Polyimide Aramid FMS Filter Cloth for High Temperature Filtration

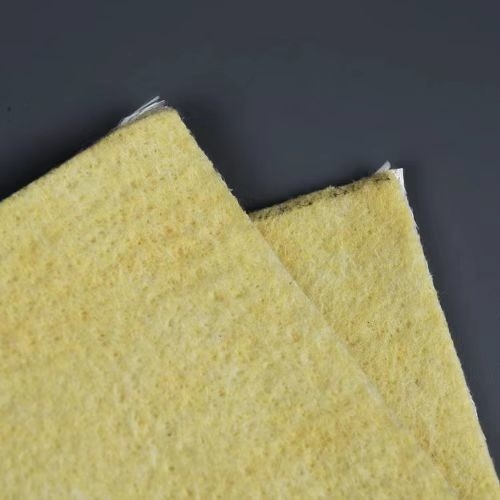

P84 Polyimide High Temperature Fiberglass Fabric Woven 800gsm Aramid FMS 0



Quick Detail:




** weight: 800-1000g/m²
** thickness: 2.5mm
** working temperature: 260ºC
** high filtration efficiency
** good filtration rating
** good air-permeability
** three-dimensional filter layer, porosity



Description:



FMS filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.





Specifications:



The performance of several widely used products is as following:

Type

Item

FMS9806

High temperature type (For blast furnace gas)

FMS9807 Common type FMS9808 Anti-stron gacid FMS9809 Anti-high temperature FMS9810 Common temperature
Weight (g/m2) >800 >800 >800 >800 >800
Thickness (mm) 2.4~3.0 2.4~3.0 2.4~3.0 2.5 2.1

(m2m2/min)

Air permeability

8~15 8~15 8~15 8~15 8~15

Tensile strength

(N/5 20cm)

Warp >1800 >1800 >1800 >1800 >2000
Weft >1800 >1800 >1800 >1800 >2000
Tensile Elongation (%) Warp <10 <10 <10 <10 <10
Weft <10 <10 <10 <10 <10
Working Temperature 260 240 220 400 150
Short time Working temperature(°C) 300 260 280 450 170
Filter velocity (m/min) 0.5~1.5 0.8~1.2 0.8~1.2 0.8~1.2 0.8~1.2
Anti-acid Excellent Excellent Excellent Excellent Excellent
Anti-alkali Medial Medial Excellent Medial Medial
Anti-abrasion Medial Medial Excellent Medial Excellent
The stability of water solution Medial Medial Excellent Medial Medial
Finishing treatment treatment






Item Unit Parameter
Material Face:glassfiber mix P84 Scrim:GL
Grammas Per Square Meter g/m2 850±5%
Thickness mm 2.0±0.2
Air Permeability(200Pa) L/dm2.min 200~250
  Cont 260
Temperature Resistance Peaks 280
  Warp N/50*200mm ≥2800
Minimum Breaking Strength Weft ≥2800
  Warp % ≤10
Elongation at Break Weft ≤10
Surface Design Treatment Singeing,Calendering,Heat-set,PTFE treatment
Using Scope Cement klin head and tail ,Steel,Blast furnace gas



Notices:



FMS needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance,it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower.





Applications:



Chemical plant Cement plant

Steel iron plant Melting plant

Carbon black plant Electricity Industry

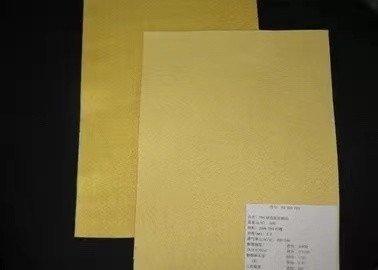

P84 Polyimide High Temperature Fiberglass Fabric Woven 800gsm Aramid FMS 1



Others:



We can supply following non-woven filter fabric:
1) Normal temperature resistant needle punched felt (PP, PET)
2) High temperature resistant needle punched felt (PPS, Fiberglass, P84, FMS)
3) Antistatic felt:
A) Blended polyester anti-static needle punched felt
B) Basic scrim anti-static needle punched felt
C) Blended polyester anti-static needle punched felt with anti-static basic scrim
4) Water and Oil Repellent Felt (PET)
5) PTFE Coated Felt(PP+PTFE, PET+PTFE)
6) Liquid Filtration Needle Punched Felt (PP,PET)

For more details,please contact me freely.
