Place of Origin:
CN
Brand Name:
HD
Certification:
ISO9001:2015
Polypropylene Filter Cloth Filter Press Cloth For Wastewater Treatment
HD Filter Cloth:
Filter Cloth For plate filter press, Belt Filter Press, Disc Filter etc.
1). Filter Cloth: Polyester Filter Cloth, Polypropylene Filter Cloth, PA Filter Cloth
2). Weight standard: 250gsm - 900gsm. OEM order is also accepted.
3). Non woven felt filter cloth, 500gsm - 900gsm weight.
4). Micron 10 micron -100 micron filtration precision.
About Filter Cloth :
1). Filtration media Filter Cloth is the physical media for solids separation inside the filter press.
2). Solids build up on the surface of the cloth beginning on the surface of the filter cloth and continue to build up towards the center of the chamber.

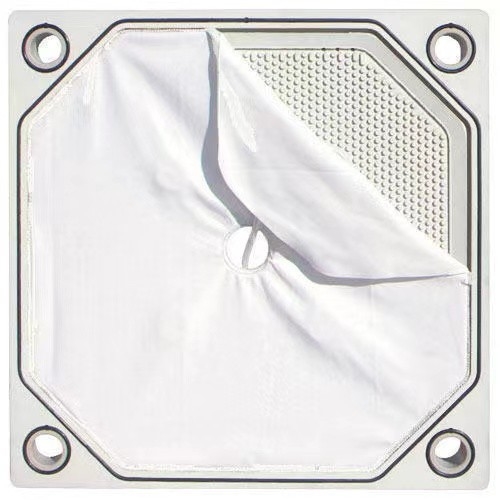

3). Filter cloths can be made for Non-Gasketed, Gasketed chamber Filter Press plates.
4). Woven and non-woven filter cloths are available.
5). Fibers can be made from polypropylene, polyester, Nylon or specialty material.
Selection of Filter Cloth:
1). Selection of a filter cloth is application dependent.
2). Considerations are made for particle size, suspended solids concentration, temperature and chemical make-up of the slurry.
HD Filter Cloth Fine Solid Collection, Liquid Solid Separation Filter Cloth is mainly applied for Mining industry, Chemical Industry, Food industry. Mineral tailing concentration, Wastewater treatment, sludge sewage dewatering, kaolin clay, quarry, granite production process etc.
Filter Cloth Material:
Polypropylene (PP) Filter Cloth
Nylon Filter Cloth
Polyester Filter Cloth
Vinylon PV Filter Cloth
Needle felt
Cotton
We offer Filter Cloth for following Type of Plate:
Gasketed
Non-Gasketed
Center feeding
Corner feeding
Membrane
Plate and Frame
Filter Cloth Application:
Mining Industry: Coal Washing, Tailing of Gold / Zinc / Nickle, Tialing of coal, Kaolin clay, Cement, Aggregate, Asphalt etc.
Environmental protection: Sewage treatment, Sludge dewatering, flue gas desulphurization, Salt mud, fly ash etc.
Chemical Industry: Pigment, Zinc oxide, Activated carbon, Iron oxide, Nickle, Titanium Oxide, White Carbon Black, Calcium Carbonate etc.
Steel & Iron, Metallurgical Industry: Alumina / Aluminum oxide, Iron Ore, Gold, Leads, Vanadium, Nickel, Zinc, Copper, Titanium etc.
Food processing: Fruit juice, Sugar, Syrup, Beer Eatable Oil etc.
Advantage OF HD Filter Press Cloth:
High dimensional stability
Good abrasion performance
Wide range of filter rate
Efficient fabric cleaning
Smooth Surface
Easy Cake Releasing
