Membrane Polypropylene Non Woven Filter Fabric 30 Micron

Membrane Polypropylene Non Woven Filter Fabric 30 Micron

Membrane Filter Press Cloth

30 Micron Filter Press Cloth

600gsm Polypropylene Non Woven Filter Fabric

Place of Origin:

CN

Brand Name:

HUADING

Certification:

ISO9001:2015

Model Number:

HD-PREFC

Contact Us
Request A Quote
Product Details
Product Name:
Membrane Filter Press Cloth
Material:
Polyester / Polypropylene
Technology:
Woven
Weight:
200gsm - 600gsm
Finish Treatment:
Heat Setting; Calendering
Filter Type:
Frame Plate Filter
Application Industry:
Sewage Treatment; Solid&Liquid Filtration; Sludge Dewatering
Size:
30 Micron ;50 Micron
Payment & Shipping Terms
Minimum Order Quantity
50 Pieces
Price
Negotiable
Packaging Details
Polybag
Delivery Time
10-15 Work Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50000 Pieces per Month
Product Description

Membrane Filter Press Cloth Polypropylene Non Woven Filter Fabric 30 Micron ​



Press filter cloth description



Press filter cloth has always been a crucial component in the press filters. It’s quality and correct selection decides the throughput and filtration performance. Nowadays 98% of the press filtration equipment using filter cloth as the filter medium. The press filter cloth has obvious widely range applicability and serviceability.



The press filter cloth also has diverse weaving type to obtain different particle retain and filter cake discharge capacity.

For instance, press filter cloth in twill weave has more smooth surface than plain weave for easy cake release and larger aperture for dewatering and anti-blinding. It’s suitable for high viscosity slurry.





Material: Nomex; Aramid; PPS; PTFE Technology: Nonwoven
Weight: 400gsm - 1000gsm Width: Max 220cm
Finish Treatment: Heat Setting; Calendering; PTFE Dipping; PTFE Membrane Working Temperature: Max 260℃
Length: 50m/roll; 100m/roll Application Industry: Asphalt Mixing; Steel Plant; Cement Plant; Waste Incineration







Press filter cloth

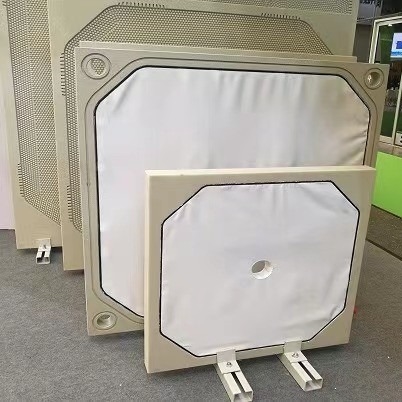

There are three types of the vertical filter press – Chamber press filter, Plate & frame press filter, and Membrane press filter. Even though the press filter cloth for the three above are all quadrate, they are different.

The press filter cloth for membrane and chamber press filter are the same, connect two pieces of square filter cloth by the central neck tube, and the cloth for plate & frame press filter is a single square piece with open circular space at the corresponding position.



How to choose the filter press cloth for your press filters?


1) Select the material: According to the filtrate chemical and physical properties to choose the ideal material of the press filter cloth, see synthetic fiber chemical & physical properties.
2) Select the fiber: There are monofilament, multifilament, short fiber, etc. of filter press cloth for press filters, the fiber influence the filtration performance, strength, regeneration, and other properties.
3) Choosing the right weave pattern
The weave pattern affects the precise, cake discharge and cloth regeneration performance.
4) Cloth after-treatment, heat set treatment
5) Filtration experiment on the raw materials slurry is important after the preliminary selection of the filter press cloth. A sample experiment was carried out on the material filtration to check the filtration rate, retention performance, filter cake moisture content, cake release performance, regeneration properties, etc.

Membrane Polypropylene Non Woven Filter Fabric 30 Micron 0

Membrane Polypropylene Non Woven Filter Fabric 30 Micron 1

Our company’s products mainly include:high temperature filter material,non-woven needle felt,dust collect filter bag,woven filter cloth,vacuum filter belt,air slide fabric,polyester fabric,sludge dehydrating belt and high density stainless steel mesh screen,our quality had reached international standard and leader level in filter industry.
