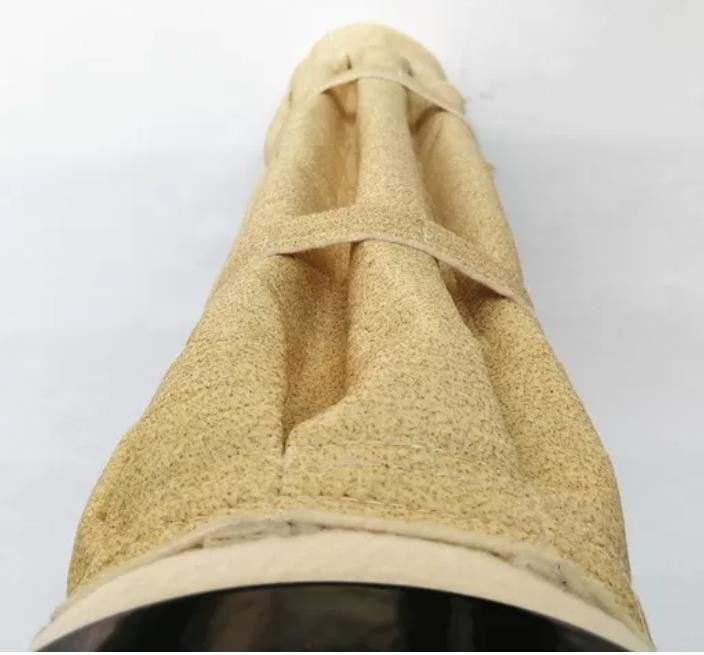

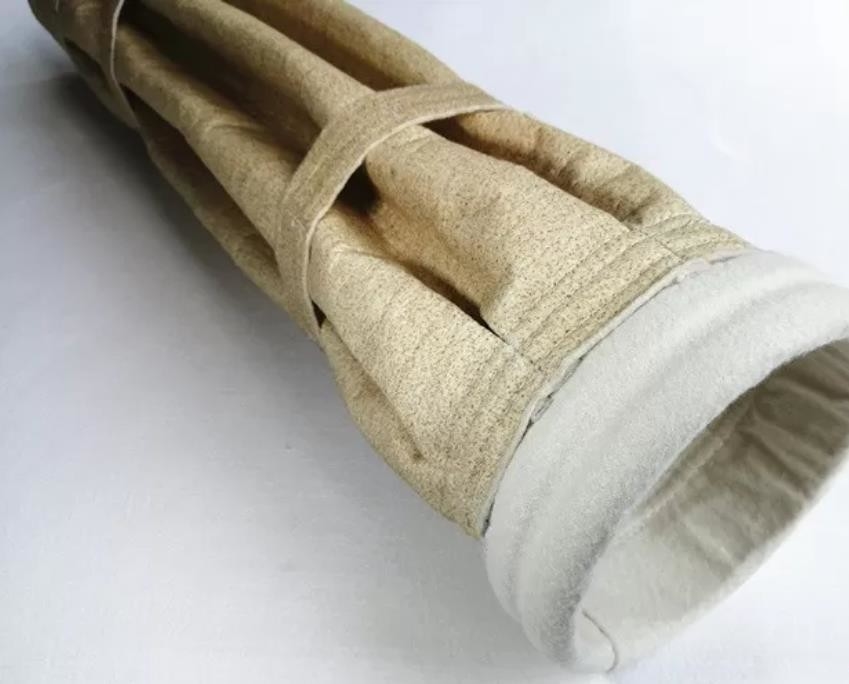

Aramid Star Filter Bag Nomex Pleat Dust Collect Bag Expand Filter Surface Bag 130mm Diameter Star Bag
Specification
Star filter bags (Star bags) is named pleat bag or extend filter surface bag, a special design to extend the filter surface. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. It is also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio.
Pleated/star bag filter provides up to 2.1 times the filtration
The area of existing equipment is due to innovation
Folded/pleated design.
Increasing the filter area causes air to enter the medium
When the airflow is maintained at the same, the pressure drop is also reduced.
| Style | star bag, pleat bag, extend surface/area bag | ||
| Pleats No. | 8 pleats | ||
| Material | Aramid / Nomex | ||
| Diameter | 130 | mm | |
| Length | TBD | mm | |
| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 130 | mm |
| Cuff | Type | bead cuff | |
| Width | 25-30mm | ||
| Thickness | 3-7mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 130 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
advantage
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 |
| 12 pleats | 130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 |
