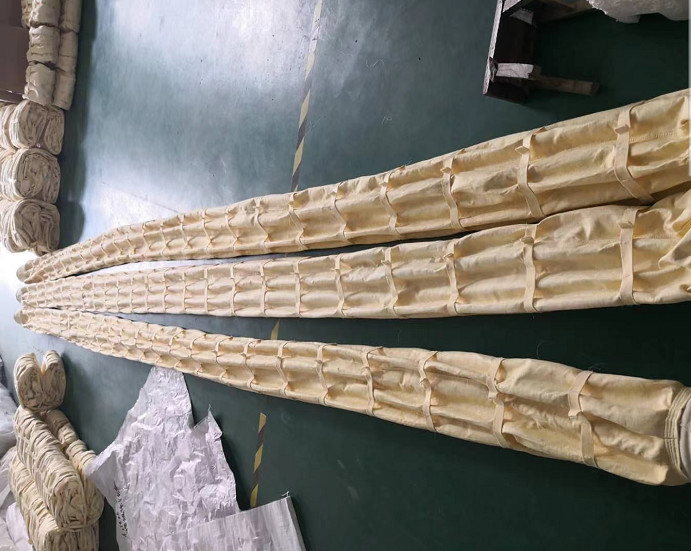

130mm 8 Pleat PPS Filter Bag Seal Cuff Star Filter Bags

130mm 8 Pleat PPS Filter Bag Seal Cuff Star Filter Bags
130mm 8 Pleat PPS Filter Bag Seal Cuff Star Filter Bags 130mm 8 Pleat PPS Filter Bag Seal Cuff Star Filter Bags

Large Image :  130mm 8 Pleat PPS Filter Bag Seal Cuff Star Filter Bags

Product Details:
Place of Origin: CN
Brand Name: HUADING
Certification: ISO9001:2015
Model Number: HD-PLTFB
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Polybag & Paper box
Delivery Time: 10-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Pieces per Month

130mm 8 Pleat PPS Filter Bag Seal Cuff Star Filter Bags

Description
Material: PPS Diameter: 130mm
Number Of Pleats: 8 & 12 Head: Seal Cuff
Metal Hoop: SUS 304 Bottom: Double Layer
Length: Customized Application Industry: Steel, Power, Waste Incineration Flue Gas Filtration
High Light:

130mm PPS Filter Bag

,

8 Pleat PPS Filter Bag

130mm 8 Pleat PPS Filter Bag Seal Cuff Star Filter Bags

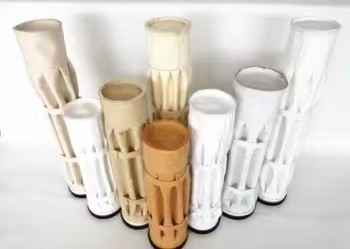

130mm Diameter PPS Star Filter Bag PPS Pleat Dust Collect Bag Filter Area Expanded Star Bag



Description

Pleated/star bag filters are specifically designed to maximize the surface area of the filter, offering a longer lifespan and minimizing change-outs while still being a cost-effective option for bag filtration applications.It is also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.Our pleated/star filter bags are engineered to deliver solutions for most common baghouse problems. This simple change will improve production, reduce pressure drop, increase collection efficiencies and reduce filter changeouts and maintenance time.



130mm 8 Pleat PPS Filter Bag Seal Cuff Star Filter Bags 0



Characteristics

Style star bag, pleat bag, extend surface/area bag
Pleats No. 8 pleats
Material PPS
Diameter 130 mm
Length TBD mm
Strap / band Type cut felt strap
afixing thread sewing to bag
Width 25 mm
Distance 250 mm
Top Opening 130 mm
Cuff Type seal cuff
Width 10-12mm
Thickness 8-10mm
Distance 4-8mm
Metal hoop inside of top yes
material 304 stainless steel
width 25-30mm
Fix sew to bag body
Boot / Bottom Diameter 130 mm
Height 100-120 mm
Reinforcement two layers
Bottom disc two layers
Metal hoop no, 20-25mm 304 stainless steel if yes
Fix sew to bag body
Seam Type thread sewing
Bag panel/body triple rows sewing
Cuff panel 2 double rows sewing
boot upper 2 double rows sewing
boot bottom double rows sewing
Pack Poly bag and pallet, or carton and pallet



Filter surface expanded (%)

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below

filter surface Dianmter mm Bag Length
1m 2m 3m 4m 5m 6m
8 pleats 130 42.09 59.85 65.77 68.73 70.50 71.69
12 pleats 130 74.82 96.67 103.95 107.59 109.78 111.24
