Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-PPSNF

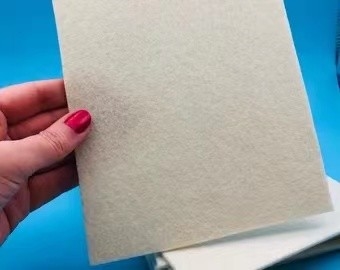

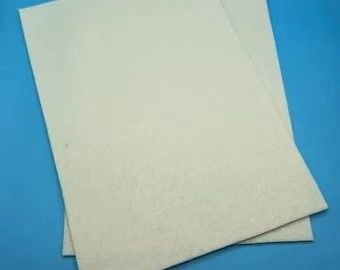

650g PPS PTFE Blending Needle Punched Nonwoven Felt With PTFE Membrane
PPS with PTFE membrane filter cloth
Material:PPS Needle Felt
Weight: 450GSM~650GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Applications:
Coal - Fired Boilers bag houses Calciners / Catalysts.
Municipal Solid Waste Boilers and Waste incinerator.
Electric power plant Electrolysis and other Specialty membranes.
Waste to energy Iron and non ferrous Metal Industry.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
| Weight(gsm) | 500 | |
| Thickness(mm) | 1.8 | |
| Width(mm) | ≤2.2 m | |
| Finish treatment | Singeing, Calendaring, Heat setting | |
| Air permeability(L/m2.s) | 200-300 | |
| Tensile strength(N/5 cm) | warp | ≥1100 |
| weft | ≥1500 | |
| Tensile elongation(%) | warp | ≤15 |
| weft | ≤20 | |
| Heat shrinkage(%) | warp | ≤1.5 |
| weft | ≤1.0 | |
| Temperature(°C/°F) | Continue | 190/374 |
| Instant | 220/428 | |
| Anti-acid | Good | |
| Anti-alkali | Excellent | |
| Anti-abrasion | Excellent | |
| Hydrolysis stability | Middle | |
