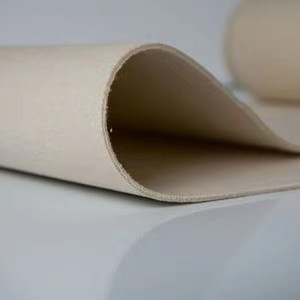

Dust Collector PPS Needle Felt Heat Setting Ryton Water Repellent Polyester Fabric

Dust Collector PPS Needle Felt Heat Setting Ryton Water Repellent Polyester Fabric
Dust Collector PPS Needle Felt Heat Setting Ryton Water Repellent Polyester Fabric Dust Collector PPS Needle Felt Heat Setting Ryton Water Repellent Polyester Fabric

Large Image :  Dust Collector PPS Needle Felt Heat Setting Ryton Water Repellent Polyester Fabric

Product Details:
Place of Origin: CN
Brand Name: HUADING
Certification: ISO9001:2015
Model Number: HD-PPSNF
Payment & Shipping Terms:
Minimum Order Quantity: 100 Square meter
Price: Negotiable
Packaging Details: Polybag
Delivery Time: 10-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 Square meter per Month

Dust Collector PPS Needle Felt Heat Setting Ryton Water Repellent Polyester Fabric

Description
Material: PPS; Ryton Technology: Nonwoven
Weight: 400gsm - 800gsm Width: Max 220cm
Finish Treatment: Heat Setting; Singeing; Calendering; Water&Oil Repellent; PTFE Dipping; PTFE Membrane Working Temperature: Max 220℃
Length: 100m/roll; 50m/roll Application Industry: Cement Plant; Steel Plant; Power Plant
High Light:

PPS Needle Felt Heat setting

,

Dust Collector PPS Needle Felt

,

Ryton Water Repellent Polyester Fabric

PPS Industrial Filter Fabrics / Dust Collector Filter Fabric With PTFE Membrane

PPS with PTFE membrane filter cloth



Material:PPS Needle Felt
Weight: 450GSM~650GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.

Dust Collector PPS Needle Felt Heat Setting Ryton Water Repellent Polyester Fabric 0



Applications:



Coal - Fired Boilers bag houses Calciners / Catalysts.

Municipal Solid Waste Boilers and Waste incinerator.

Electric power plant Electrolysis and other Specialty membranes.

Waste to energy Iron and non ferrous Metal Industry.

Dust Collector PPS Needle Felt Heat Setting Ryton Water Repellent Polyester Fabric 1



Making method:



Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.

Physical and Chemical Properties

Weight(gsm) 500
Thickness(mm) 1.8
Width(mm) ≤2.2 m
Finish treatment Singeing, Calendaring, Heat setting
Air permeability(L/m2.s) 200-300
Tensile strength(N/5 cm) warp ≥1100
weft ≥1500
Tensile elongation(%) warp ≤15
weft ≤20
Heat shrinkage(%) warp ≤1.5
weft ≤1.0
Temperature(°C/°F) Continue 190/374
Instant 220/428
Anti-acid Good
Anti-alkali Excellent
Anti-abrasion Excellent
Hydrolysis stability Middle
