Pressure Filter Spiral Mesh Belt PPS Spiral Filter Fabric For Sludge Dehydrating
|Place of Origin||CN|
|Minimum Order Quantity||1 Piece|
|Packaging Details||Polybag or Wooden box|
|Delivery Time||15-30 Work Days|
|Payment Terms||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability||5000 Square meter per Month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Weight||800gsm - 2000gsm||Width||Max 880cm|
|Finish Treatment||Heat Setting; Calendering||Working Temperature||Max 220℃|
|Color||White; Blue; Yellow; Red; Black||Application Industry||For Dryer Of Paper Making|
Pressure Filter Spiral Mesh Belt,
Spiral Mesh Belt Sludge Dehydrating,
PPS Spiral Filter Fabric

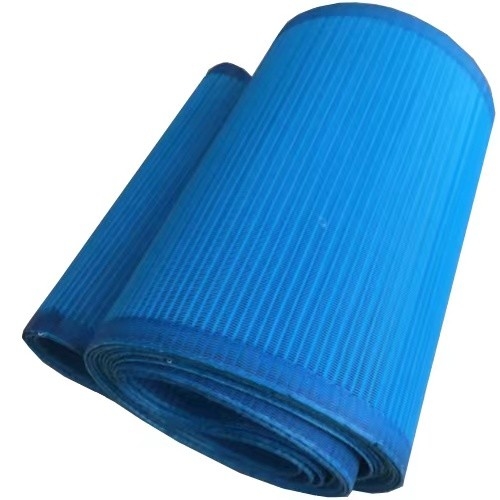

Pressure Filter Spiral Mesh Belt / Spiral Belt For Sludge Dehydrating / Spiral Filter Fabric For Press Belt Filters
Polyester spiral mesh belts have a spiraled continuous and seamless screen structure, which is ideal for applications in which a seam would be unmeet due to mechanical loads. Meanwhile, the unique spiral linked weave type makes the polyester spiral mesh belts flexible in warpage, and the heat-setting treatment ensures the spiral belts durability and a long, productive life without deformation, easy to install, clean and maintains.
This kind of synthetic spiral fabrics are widely used as filter belts, dryer screen belts or conveyor belts in dewatering processes with fibrous products, or for industry sludge dewatering and drying, nonwoven forming, and thermal applications include drying of veneers, manufacture of gypsum plasterboard or for multi-stage dryers in the foodstuff processing etc.

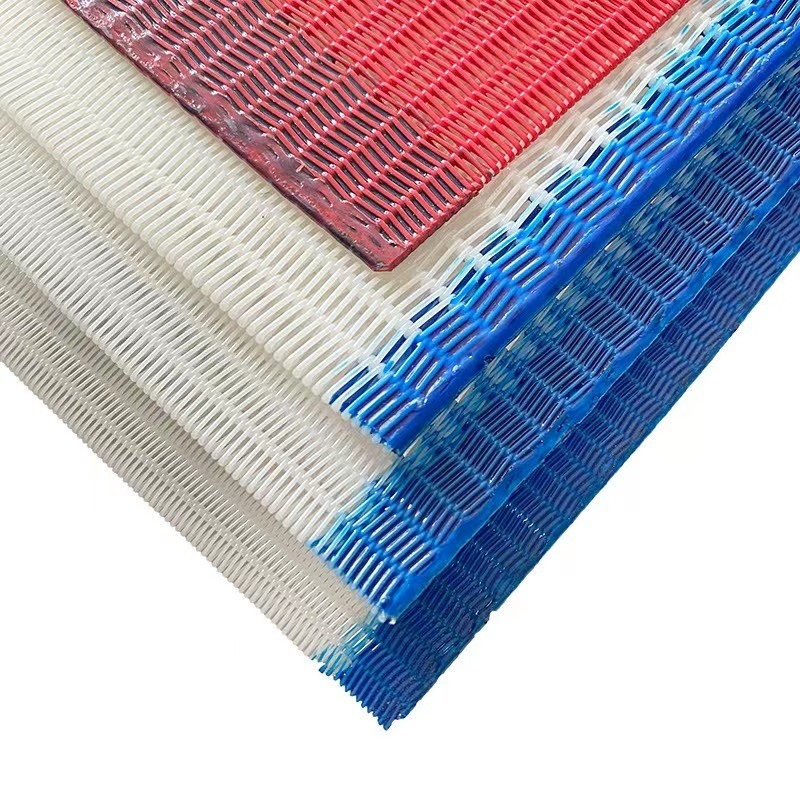

Synthetic polyester spiral dryer mesh belt fabrics
Huading's polyester spiral mesh belts can be made of 100% Polyester, or anti-hydrolysis Polyester for high temperature and high humidity, or 100% PPS for high temperature 150-240°C working condition, other kinds of material can be customized for antistatic, dirt-repellent, or enhanced abrasion-resistance performance etc.
Various types in different yarn diameter 0.5mm-1.1mm, small, medium and large spiral rings, flat or round yarn, filled or unfilled are all available to achieve optimal air permeability rates, tracking stability, high throughput rate, and excellent filtration efficiency.
Huading's Polyester Spiral Mesh Belts Properties:
Good durability and long productive life.
Smooth surface and easy filter cake discharge.
High-temperature resistance, Polyester up to 150°C, PPS up to 240°C.
Excellent chemical stability. Synthetic Fiber Chemical Properties Table
Multiple monofilament models with the small, medium and large loop.
Filled or unfilled to achieve different filtering requirements.
Seamless connection, no swelling at the joint, the same air permeability in whole filtering area.
Easy to install on a machine.
Suitable for small roller diameters.
Supplied in large width up to 10 meters.
