Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-ACRNF

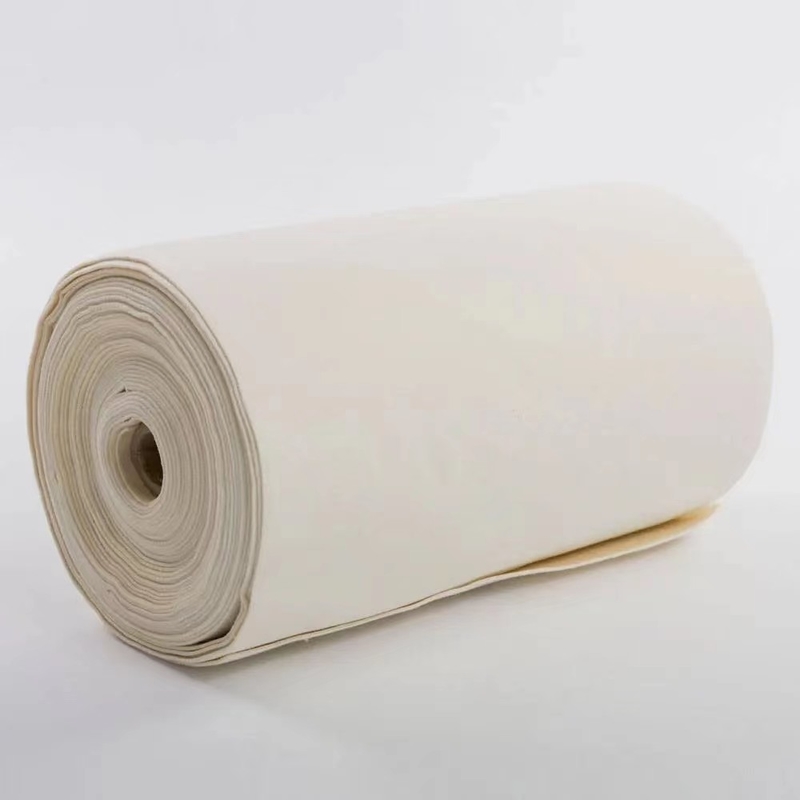

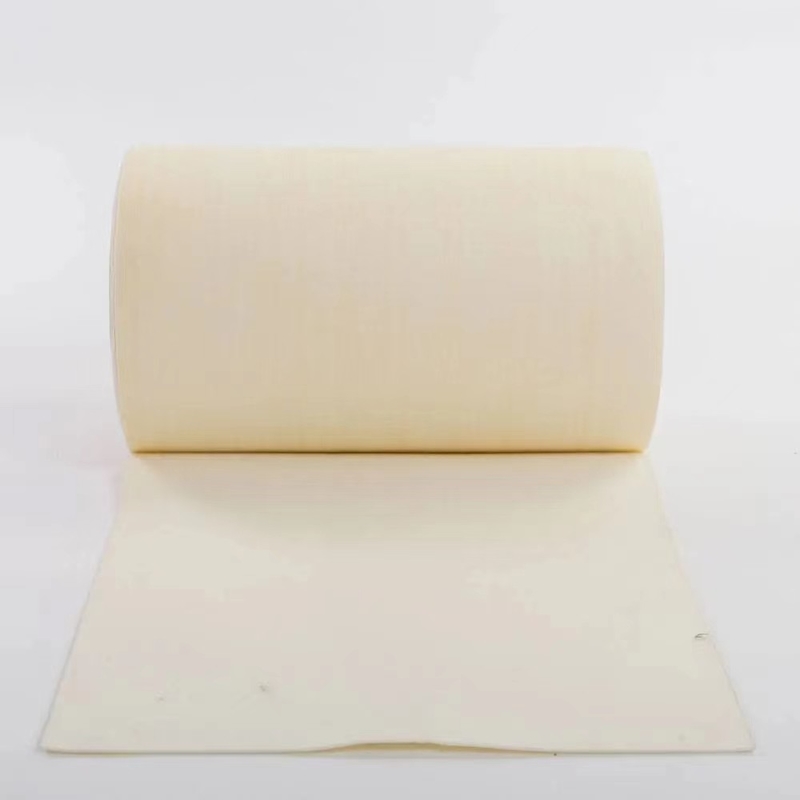

Arcylic Dust Collector Filter Bag Material Acrylic Needle Felt With PTFE Membrane 450GSM~650GSM
Arcylic with PTFE membrane filter cloth
Material: Arcylic with PTFE membrane Needle Felt
Weight: 450GSM~650GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
| Fibre | Arcylic |
| Scrim | Arcylic |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set,overlaying PTFE membrane |
| Air permeability (m3/m2/min): | 2~5 |
| Tensile strength (N/5× 20cm) | Warp:>800 Weft:>1000 |
| Tensile elongation (%): | Warp:<15 Weft:<25 |
| Temperature (ºC): | Continue: 125 Instant: 140 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
| Application | Mainly used in metallurgy, chemical, building material, electric power station, mechanism industry, petroleum, medicine, printing and dyeing, food and beverage, and other industries to filter gas and recycle material. |
Applications:
Chemical processing:dryers in the pigment,plastic and catalyst industries
Minerals processing:dryers and finish mills in the cement industry
Metal processing:process collectors in the lead,primary base metal,and foundry industries
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
