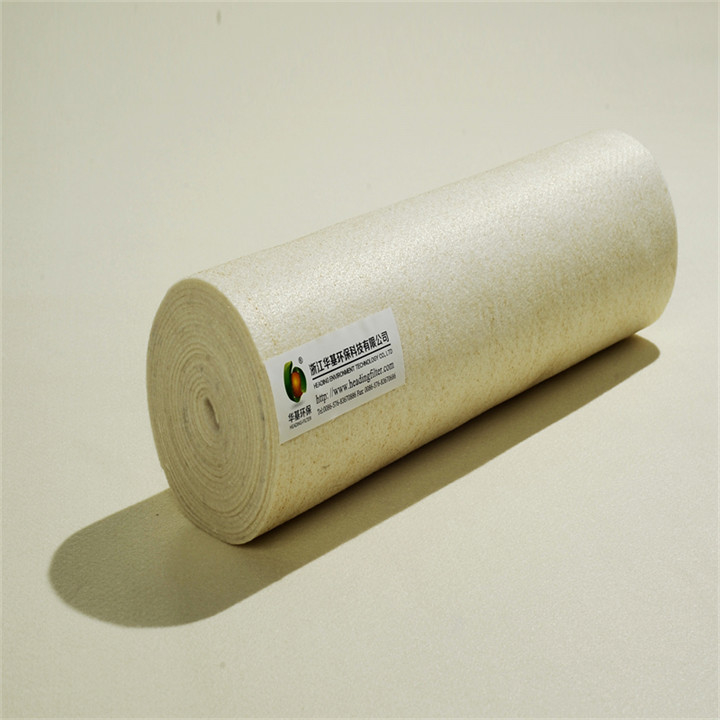

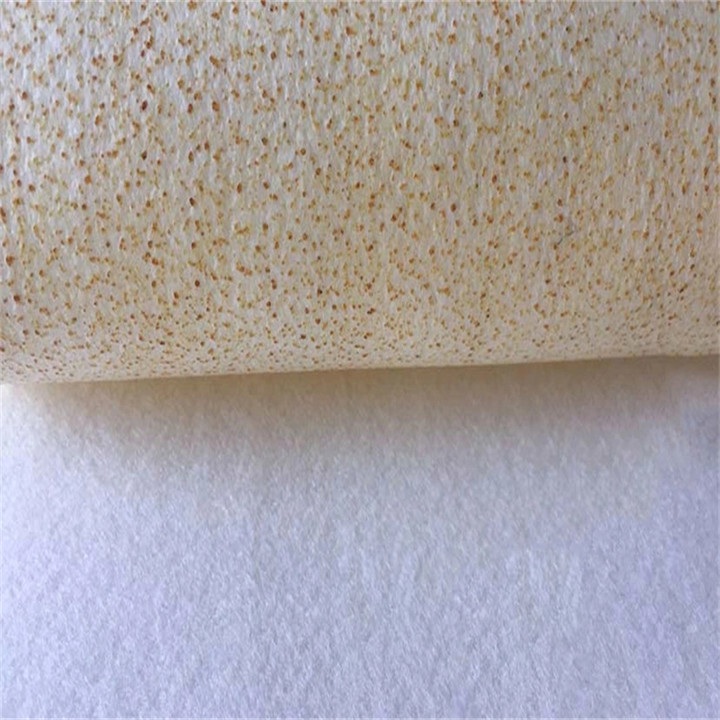

Industrial Acrylic Needle Felt Filter Fabric With Acrylic Scrim
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Anti-static, Waterproof, Oil-proof | Weaving Method | Acupuncture,Plain Twill Satin |
|---|---|---|---|
| Spot Goods | Yes | Processing Methods | Three Needles And Six Threads |
| Continuous Working Temperature | 220 Degrees Celsius | Use | Dustproof, Dust Removal |
| Hole Pattern | Round Hole | Color | Light Yellow |
| High Light | Acrylic Needle Felt Filter Fabric,Acrylic Scrim Industrial Filter Cloth,Industrial Acrylic Filter Fabric |
||
Product Description
Product Description:
According to the types of synthetic monomers, acrylic fibers could be divided in to homopolymers and copolymers. The homopolymer acrylic has the structure of polymerization of a single monomer, with the spatial of spiral rod structure, and quasicrystalline in crystalline structure. There is a -cn group on the side of the molecule, and the dipole or hydrogen bonding between the molecules makes it difficult to slip,and the homopolymer is inflexibility.
The copolymer a crylicis combined with the second and third monomers embedded in the polyacrylonitrile macromolecule, which destroys the helical structure, makes it dislocation,bending, twisting and others, which affects the continuity of the crystal along the axis of the macromolecule. This makes the structure becomes soft, and the fiber is strong and stretchable.
However, the maximum working temperature of homopolymer is 130°C, and the instantaneous working temperature < 140°C. The maximum temperature of copolymer is 120°C, and it is not resistant to hydrolysis, that’s why our Acrylic filter fabric are made out by 100% homopolymer acrylic fibers.
Features:
- Product Name: Acrylic Needle Felt with Acrylic Scrim
- Suitable: Dust
- Serve: Technical Support
- Continuous working temperature: 220 Degrees Celsius
- Hole pattern: Round Hole
- Material: Acrylic Base Cloth, Acrylic Fiber Surface Layer
- High temperature resistant: Perfect for power plant dust collection
Technical Parameters:
| Parameter | Description |
|---|---|
| Type | Efficient |
| Fiber | Acrylic |
| Warranty | 2 Years |
| Processing methods | Three Needles And Six Threads |
| Material | Acrylic Base Cloth, Acrylic Fiber Surface Layer |
| Filtration accuracy | 1(μm) |
| Serve | Technical Support |
| Caliber | 133/155mm |
| Weaving method | Acupuncture,Plain Twill Satin |

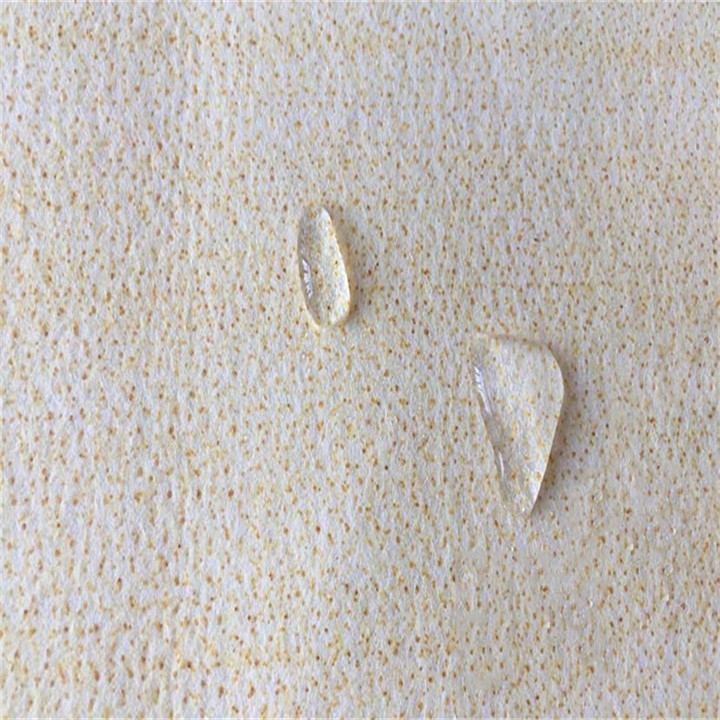

| Features | Anti-static, Waterproof, Oil-proof |
| Application | Cement Factory |
| Special Features | High Temperature Resistant, Aramid Filter Bag |
Advantage of Acrylic Needle Felt Filter Fabrics:
- Good resistance to organic solvents,oxidants, inorganic and organic acids,
- Working PH value 3-11
- Good hydrolysis resistance
- Excellent sun light resistance
Disadvantage of Acrylic Filter Fabrics:
Acrylic fiber is notable to self-extinguish after burning. Usually the dust bag works in a dry and ventilated environment, when it encounters sparks or static sparks, it’s very easy to burn.
In response to this fatal shortcoming, we use PTFE dipping or membrane on the acrylic needle felt for flame retardant treatment, the PTFE membrane make the fabric surface has small and uniform micropores (0.10-2.0μm), which can capture all the dust larger than the micropores. So our Acrylic nonwoven needle felt filter would collect the PM10 & PM 2.5 at rate 99.99%.
