Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-NOMNF
1.High tensile strength
2.Dust filter bag
3.Good anti-acid
4.Aramid filter bag body with glass felt top
Ferroalloy Smelting Dust Filter Nomex Filter Bags,
Dust Bag Filter Nomex Filter Bag For Blast Furnace Smoke Filtration
Nomex filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,Kiln smoke in cement plant ,steel plant blast furnace smoke and Ferroalloy Smelting Dust Filter Nomex Filter Bags.
NOMEX filters offer one of the best total economies in a filtrationsystem because of higher air to cloth ratios, higher temperaturecapability, and a long wear life.
Introduction:
Nomex filter bags are made of 100% Meta-aramid /nomex fiber ,it is the best choice for asphalt plant dust collector , which are of metamax filter bags, aramid filter bags or baghouse filter bags.
Applications:
Being Metamax filter bags, nomex filter bags are widely used in asphalt industry, cement industry, chemical industry,Iron and steel industry, themal power industry , Aluminum industry, etc.
Features:
Nomex filter bags features excellent anti-anrasion, good anti-acid and good anti-alkali , and anti-high temperature
Advantages:
1.With high tensile strength and low tensile elongation
2.Applied in continuous temperature 204℃ , works well .
3.As nomex filter bags, it is largely used in asphalt plants.
4.With good air permeability and also can be adjusted by customers' specific request
5.Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration.
Specifications:
1.Material :with100% Meta-nomex fiber
2.Scrim: with meta-aramid /nomex staple yarn
3. Finish treatment with singeing, calendering and heat setting.
4.Air permeability (l/m2/s): 150~300
5.Temperature (℃): Continue: 204, Instant: 240

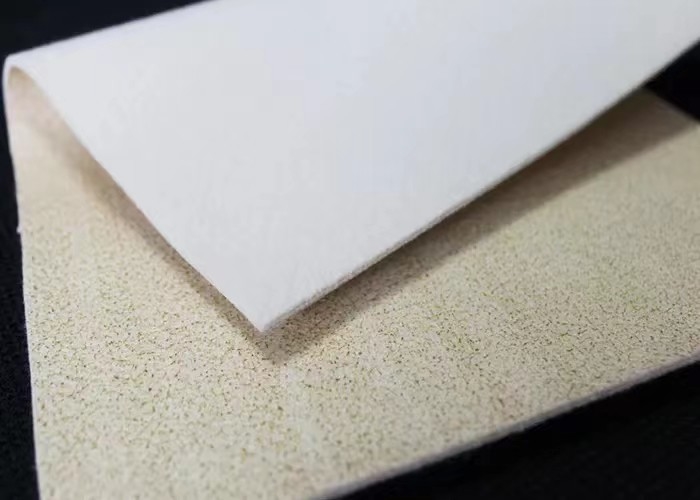

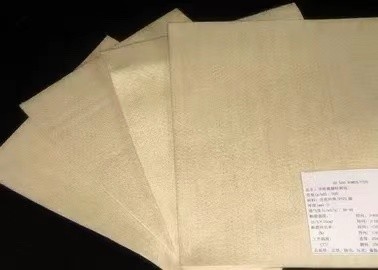

Article Name | Nomex needled felt | |
Ingredients | Fiber | 100% Nomex |
Scrim | 100% Nomex | |
Weight | g/m2 | 500 |
Thickness | mm | 2.1 |
Density | g/m³ | 0.24 |
Permeability | L/dm2.min | 150 |
Tensile breaking strength(N/5cm) |
Warp | ≥800 |
Weft | ≥1000 | |
Elongation @200N/5cm | Warp | <5 |
Weft | <5 | |
Maximum shrink of 90 mins |
Temperature(°C) | 250 |
% | ≤1 | |
Service Temperature(°C) | Continuous | 200 |
Instant | 240 | |
Finishing | Singeing, calendaring |
We are manufacuturer of dust filter bags, Polyester filter bags, Nomex filter bags ,PPS filter bags ,P84filter bag,PTFE teflon 100% filter bags ,etc.for different industry dust filtration applications.
