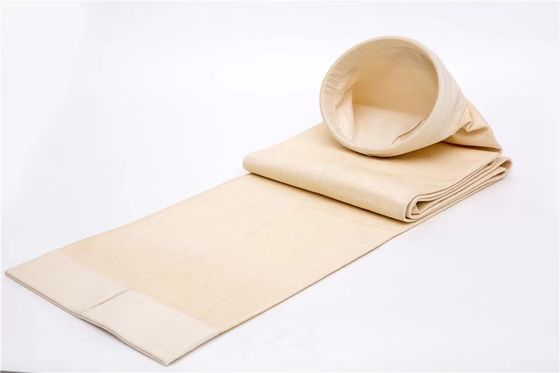

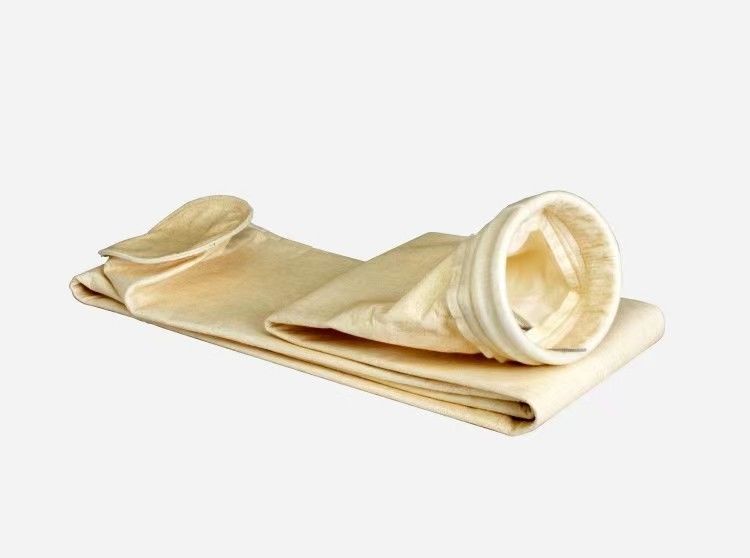

Fume Filtration Nonwoven PPS Filter Bag 5 Micron Dust Collector Bag 160mm X 6000mm

Fume Filtration Nonwoven PPS Filter Bag 5 Micron Dust Collector Bag 160mm X 6000mm
Fume Filtration Nonwoven PPS Filter Bag 5 Micron Dust Collector Bag 160mm X 6000mm Fume Filtration Nonwoven PPS Filter Bag 5 Micron Dust Collector Bag 160mm X 6000mm

Large Image :  Fume Filtration Nonwoven PPS Filter Bag 5 Micron Dust Collector Bag 160mm X 6000mm

Product Details:
Place of Origin: CN
Brand Name: HUADING
Certification: ISO9001:2015
Model Number: HD-PPSFB
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Polybag & Paper box
Delivery Time: 10-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Pieces per Month

Fume Filtration Nonwoven PPS Filter Bag 5 Micron Dust Collector Bag 160mm X 6000mm

Description
Material: PPS; Ryton Technology: Nonwoven
Weight: 400gsm - 800gsm Length: Max 1000cm
Finish Treatment: Heat Setting; Calendering; PTFE Dipping; PTFE Membrane Working Temperature: Max 200℃
Filter Type: Pulse Jet Application Industry: Power Plant; Biomass Power Generation
High Light:

Fume PPS Filter Bags

,

Nonwoven PPS Filter Bags

,

5 Micron Dust Collector Bag

Coal Fired Boiler Fume Filtration PPS Filter Bag 160mmX6000mm Fitting In Bag Filter Dust Collector



Description:



Ryton filter bag for Coal fired boiler gas filter working specially for thermal power plant coal fired boiler dust collector system, it works in high temperature gas, and complex chemical composition. Ryton filter bag with PTFE treatment for Coal fired boiler gas filter.

Coal fired boiler gas filter Ryton Filter Bags can keep intensity completely and bear chemistry resistant inherently, keep good filtration performance very well. reach ideal service life, Ryton filterbag ,widely applied in power plant.

In coal boiler, waste incinerator, thermal power plant of fly ash filtration of pulse clear dust collector, Rtyon filter bag are an ideal filtration material.

Features: 190 ºC of working temperature, 220ºC of short-term working temperature, 285 ºC of melting point. It is also available when the oxyen content is below 14%, but the operation temperature should be lowered. When there is moisture and of high abrasion, high concentration, it could be chosen.

Dust Filter bags, dust collector bag, dust filter bag, dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.

The main type of dust filter bags including Nomex filter bag, PPS filter bags, P84 filter bag, PTFE filter bags, Acrylic filter bags, Polyester filter bags, dust filter bag, bag filters, dust collector bags.



Fume Filtration Nonwoven PPS Filter Bag 5 Micron Dust Collector Bag 160mm X 6000mm 0



Applications:

In thermal power plant coal boiler, waste incinerator, thermal power plant of fly ash filtration of pulse clear dust collector, PPS filter bag, Ryton filter bag are an ideal filtration material.

Fume Filtration Nonwoven PPS Filter Bag 5 Micron Dust Collector Bag 160mm X 6000mm 1



Specifications:



Series: PPS550gsm
Material: PPS (RYTON) 450 - 650g/sq.m needle felt
Fibre: 100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)
Scrim: 100% PPS / RYTON staple fibre (Toray / Toyobo, Japan original fibre, or Chinese fibre available)
Weight: 400 - 650g/m2 (customized)
Finishing: Heat setting, single side singeing, calendering (double sides finishing would be available upon request)
Specifications: Customized according to drawing / sample
Packaging: Polybag in cartons
Applications: Coal-fired power plant, waste incinteration plant, circulating fluidized bed boilers, etc.
Delivery Time: 7-45 days



Below fiber performance index for your reference:



  Operating Temperature (°C, dry) Abrasion Resistance Hydrolysis Resistance Alkali Resistance Organic Acid Resistance Mineral Acid Resistance Oxidation Resistance (15%)
PPS 190/ (200) Good Excellent Excellent Excellent Excellent Poor



Competitive Advantage:



Quality Ryton Filter Bag

High temperature resistant
High-end production facilities
Good sewing job
PPS Ryton Filter Bag

Anti chemical function well.


Experienced technical & production:



1. Good quality Air filter material made with advanced machinery

2. Accordingly adjusted technical process

3. Strict raw material control and products quality control

4. Heat resistance
5. Good acid and alkali resistance
6. Good hydrolysis stability
7. Easy to dedust
