Pulse Spunbond Top Loaded Pleated Filter Cartridge Elements for Cement Plant

Place of Origin CN
Brand Name HUADING
Certification ISO9001:2015
Model Number HD-PLEFB
Minimum Order Quantity 50 Pieces
Price Negotiable
Packaging Details Paper box
Delivery Time 10-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Spunbond Filter Cloth Technology Nonwoven
Weight 100gsm - 400gsm Filter Type Pulse Jet
Application Air Filtration Application Industry Cement Plant; Steel Plant; Power Plant; Waste Incineration; Carbon Black
High Light

Pulse Pleated Filter Cartridge

,

Spunbond Pleated Filter Cartridge

,

Top Loaded Pleated Filter Elements

Leave a Message
Product Description

Pulse Pleated Filters / Pleated Filter Elements / Pleated Filter Cartridge / Top Loaded Pleated Filter Elements

1) PU molded top type

The structure of polyurethane molded top and bottom covers,

Adopt 100% continuous long fiber spun-bonded polyester filter material,

Continuous supporting inner mesh without corrosion, rubber or food-grade silicone seal ring,

No metal parts touch with the dusty gas, green and environmental protection.

The continuous operating temperature of 107℃.

The applicable tube sheet thickness of 5mm.

Optional after-treatment: PTFE membrane covering, anti-static coating, oil-water proof etc.

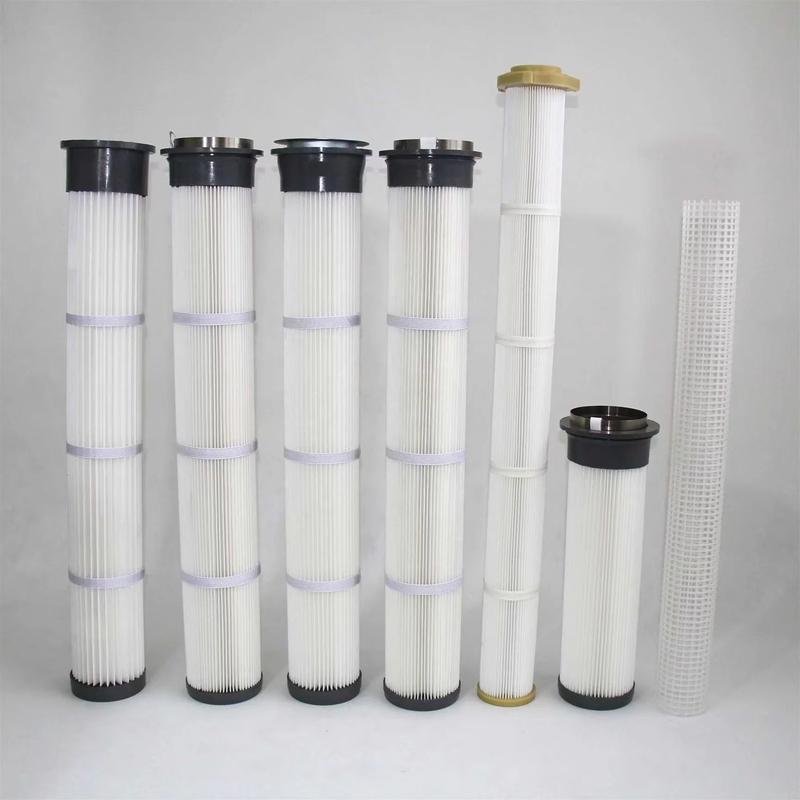

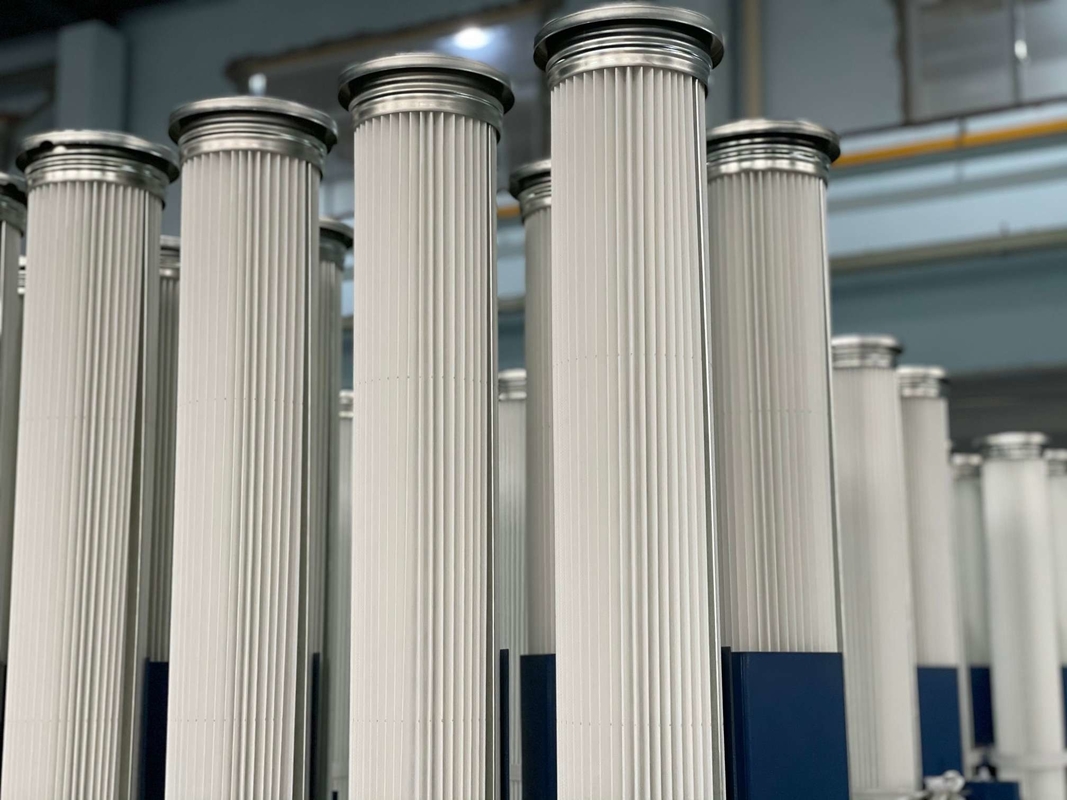

Pulse Spunbond Top Loaded Pleated Filter Cartridge Elements for Cement Plant 0 Pulse Spunbond Top Loaded Pleated Filter Cartridge Elements for Cement Plant 1

Specification

HD
Model
Cover Material
(Polyurethane)
Tube sheet
H.D(m²)
Top cover
O.D(m²)
Bottom cover
O.D(m²)
Filtration
area/(m²)
Filtration
area/(m²)
HD/LU 133 Polyurethane Φ133 Φ142 Φ120 2.0(m²) 4.0(m²)
HD/LU 153 Polyurethane Φ153 Φ160 Φ140 2.1(m²) 4.3(m²)
HD/LU 159 Polyurethane Φ159 Φ169 Φ145 2.3(m²) 4.6(m²)
HD/LU 162 Polyurethane Φ162 Φ169 Φ150 2.3(m²) 4.6(m²)
Our products have been upgraded with longer cartridges for choice.



2) Galvannized metal top type

The structure of galvanized metal top and bottom covers,

Continuous supporting inner mesh without corrosion, resilient rubber seal ring,

Adopting the shallow pleated design of 100% continuous long fiber spun-bonded polyester filter material is convenient to ash removal.

The applicable tube sheet thickness of 5mm.

The continuous operating temperature of 130 ℃.

It is often used in the bag-type dust collector retrofit.

Optional after-treatment: PTFE membrane covering, anti-static coating, oil-water proof etc.



Specification

HD
Model
Cover Material
(Galvanized metal)
Tube sheet
H.D(m²)
Top cover
O.D(m²)
Bottom cover
O.D(m²)
Filtration area/(m²) Filtration area/(m²)
HD/LM 127 Galvanized metal Φ127 Φ146 Φ114 1.1(m²) 2.3(m²)
HD/LM 133 Galvanized metal Φ133 Φ152 Φ121 1.5(m²) 3.0(m²)
HD/LM159 Galvanized metal Φ159 Φ178 Φ144 2.1(m²) 4.1(m²)
HD/LM 162 Galvanized metal Φ162 Φ178 Φ146 2.3(m²) 4.6(m²)
Our products have been upgraded with longer cartridges for choice.



3) Galvannized metal/stainless steel top type

PPS high temperature filter cartridge

PPS high temperature filter material, galvanized metal/stainless steel top and bottom covers,

The unique high temperature resistant structure , the maximum operating temperature of 190℃.

NOMEX high temperature filter cartridge

NOMEX high temperature filter material, galvanized metal/stainless steel top and bottom covers,

The unique high temperature resistant structure , the maximum operating temperature of 232℃.

P84 high temperature filter cartridge

P84 Polyimide fiber filter material, galvanized metal/stainless steel top and bottom covers,

The unique high temperature resistant structure , the continuous operating temperature of 220℃, the maximum operating temperature of 260℃.

Optional after-treatment: PTFE membrane coated on the surface.



Specification

HD
Model
Cover Material
(Galvanized metal)
Tube sheet
H.D(m²)
Top cover
O.D(m²)
Bottom cover
O.D(m²)
Filtration area/(m²) Filtration area/(m²)
HD/LH 127 Galvanized metal Φ127 Φ146 Φ114 1.1(m²) 2.3(m²)
HD/LH 133 Galvanized metal Φ133 Φ152 Φ121 1.5(m²) 3.0(m²)
HD/LH 159 Galvanized metal Φ159 Φ178 Φ144 2.1(m²) 4.1(m²)
HD/LH 162 Galvanized metal Φ162 Φ178 Φ146 2.3(m²) 4.6(m²)
Our products have been upgraded with longer cartridges for choice.
