Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-PLTFC

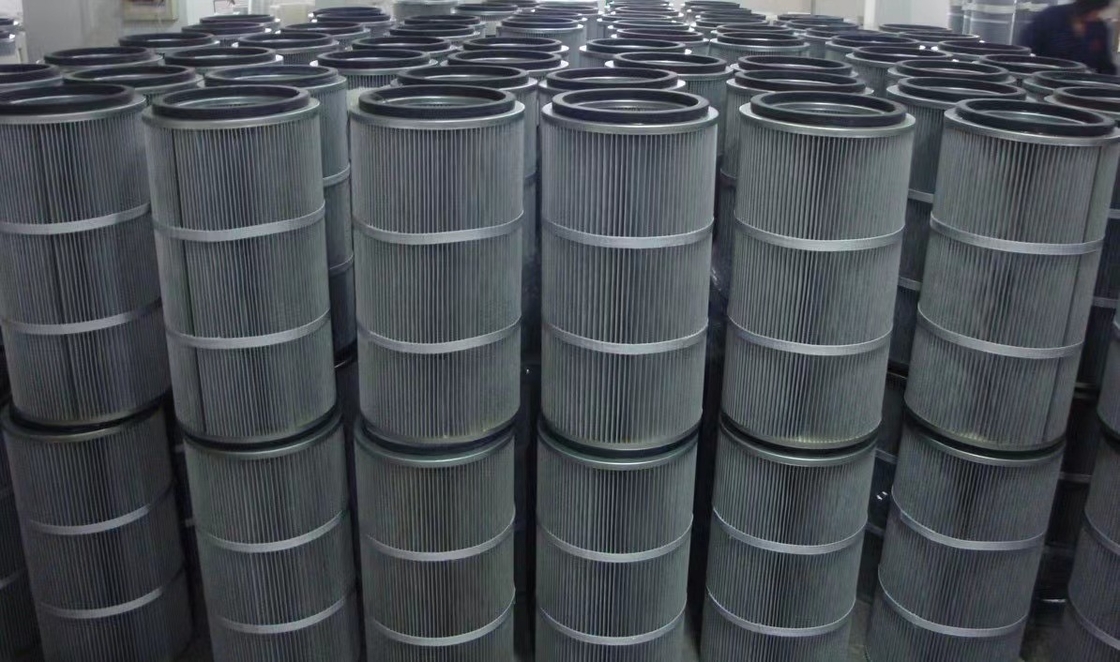

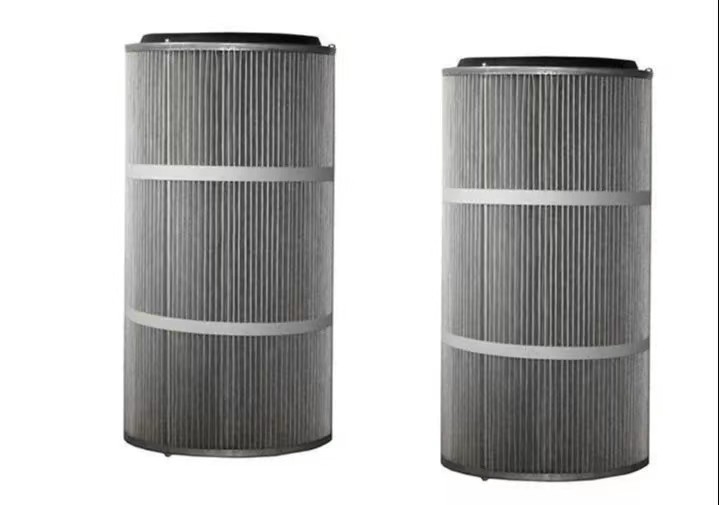

Anti-Static Polyester Filter Cartridge / Anti-Static Polyester Pleated Filter Elements
Anti-static means anti-static aluminum processing. Anti-static polyester filter cartridge reflects the antistatic property and improves the filter fineness by adding conductive fiber to the filter material and the surface of PTFE coating treatment .It can avoid electrostatic fire and be suitable for dust removal in explosion-proof condition.
The finest filtering precision: 0.3um, the conductivity: 10 8 Ω.
Suggest working temperature below 135 degrees.
Specification
| Cartridge Model | Top end Cap OD(m²) |
Top end Cap ID(m²) |
Bottom end Cap OD(m²) |
Bolt hole (m²) |
Height (m²) |
Filtration area (m²) |
| HD/D 3266 | Φ324 | Φ213 | Φ324 | Φ14 | 660 | 9.4 |
| HD/D 3566 | Φ352 | Φ241 | Φ352 | Φ16 | 660 | 10 |
| Customized specifications are also available. | ||||||
For non-standard products and more information, please consult the application technicians. HD reserves the right to amend without notice.
