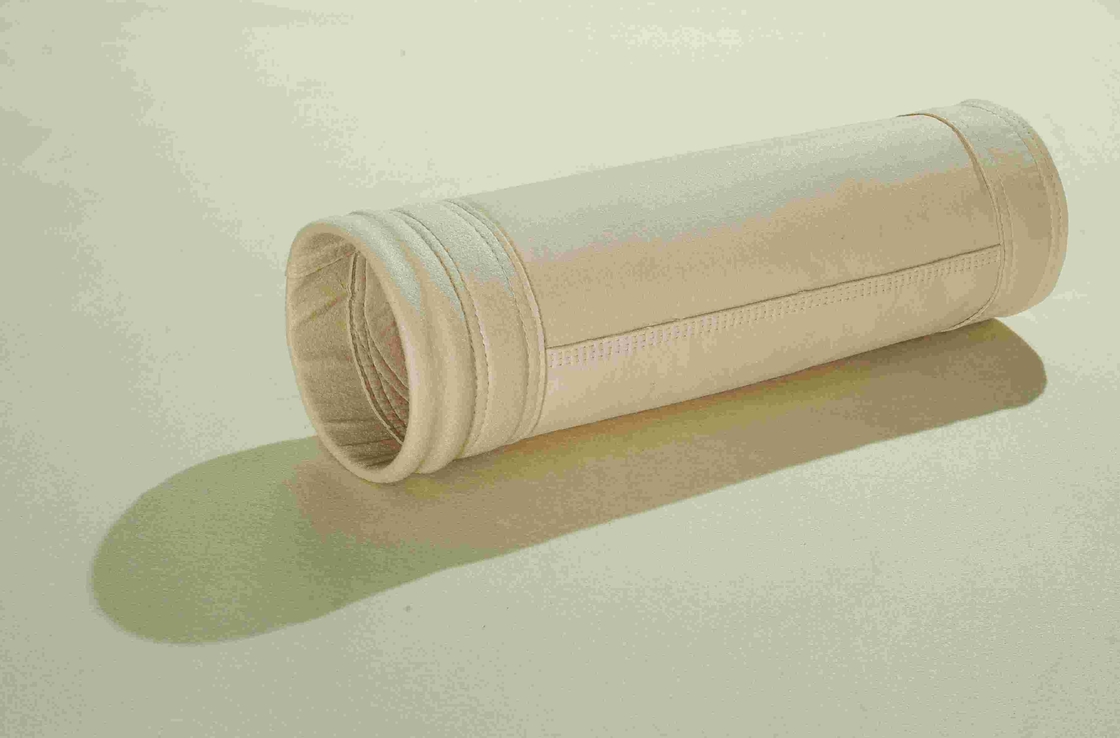

Polyphenylene Sulfite Pulse Jet Filter Bag 800gsm 24 Diameter Dust Collector Bags

Ryton Filter Bag / PPS Filter Sleeve / Polyphenylene Sulfite Filter Bag / Baghouse Filter Bag For Power Plant

Dust Filter bags PPS Filter bags Baghouse filter bags

High Efficiency Dust Collector Filter Bags PPS Filter Bag for High Temperature Resistant Fume

PPS filter bag Ryton filter bag for Thermal power plant dust filtration

Dust filter bags PPS ,Ryton filter bag Detail discription.

Introduction:
PPS filter bags are made of 100% PPS fiber ,it is the best choice for thermal power dust collector , which are of ryton filter bags, dust collector filter bags or dust collection filter bags.

Applications:
Being ryton filter bags, PPS filter bags are widely used in themal power industry, cement industry, chemical industry,Iron and steel industry, Aluminum industry , etc.

Features:
PPS filter bags features anti-high temperature ,excellent anti-anrasion, good anti-acid and good anti-alkali .

Advantages :
1.With high tensile strength and low tensile elongation
2.Applied in continuous temperature 190℃ , works well .
3.As dust collector filter bags, it is largely used in thermal power industry.
4.With good air permeability and also can be adjusted by customers' specific request
5.Being dust collection filter bags, they are installed in baghouse and with high-efficiency filtration .

Working principle:

Specifications
1.Material: with100% pps fiber
2.Scrim: with pps staple yarn
3.Finish treatment with singeing, calendering and heat setting.
4.Air permeability (l/m2/s): 150～300
5.Temperature (℃): Continue: 190, Instant: 220

Physical properties

Chemical properties

Filter bags, dust collector bags, dust bags, filter socks, bags, tubes, socks - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.

The main type of dust filter bags including Nomex filter bag ,PPS filter bags ,P84 filter bag ,PTFE filter bags ,Acrylic filter bags ,Polyester filter bags,dust filter bag ,bag filters,dust collector bags.

Dust bags come in 5 basic designs:

Pulse jet bags (bottom loader or bottom removal)
Pulse jet bags(top loader or top removal)
Shaker design
Reverse air design
Envelope bags

Pulse jet bags PPS filter bag Ryton filter bag are cleaned using compressed air to mechanically "pulse" or snap the bag periodically so that the built up filter cake is discharged and the flow through the media is returned to its higher air permeability.Ryton filter bag ,PPS filter bag are all belong to Pulse jet bags.They are are installed on wire cage supports and filter from the outside/ in. In the bottom load design, bags are pre-installed on their cages and then attached to a mounting thimble or cup which hangs down from the underside of the tube sheet. The tube sheet is a metal plate with regularly spaced holes which serves as the top of the gas tight metal box known as a dust collector. The top edge of the bottom loading bag is normally tucked into the cage and the entire assembly is attached to the thimble or cup with a hose clamp.

Installation of bottom loading bags Coal fired boiler filter bag PPS is more difficult because of being on the dirty side of the collector and having no catwalks or surfaces on which to stand. Some bottom loaders are on the top of large storage bins on tall silos which make installation potentially dangerous. Bottom loader collectors are frequently used when headroom above the collector is not adequate for top removal design bags.

Bottom loading bags are less expensive than comparable size top loaders because the top is plain with no special attachment features.

We are PPS filter bag, Ryton filter bag manufacturer .
