Name: High Performance PPS Needle Felt Industrial Filter Cloth with High Temperature Resistance Chemical Resistance and Fine Filtration
Brand: Huading Net Industry
SKU: Needle Felt
Price: 2.32 USD
Availability: InStock

Home > Products > Industrial Filter Cloth >

High Performance PPS Needle Felt Industrial Filter Cloth with High Temperature Resistance Chemical Resistance and Fine Filtration

High Temperature Resistance PPS Needle Felt

Chemical Resistance Industrial Filter Cloth

Fine Filtration Nonwoven Filter Fabric

Place of Origin:

China

Brand Name:

Heading Filter

Certification:

ISO9001

Model Number:

Needle Felt

Document:

PPS450WR Data Sheet.doc

Request A Quote

High Performance PPS Needle Felt Industrial Filter Cloth with High Temperature Resistance Chemical Resistance and Fine Filtration

Product Details

Serve:

Technical Support

Filtrationprecision:

1 Micron To 500 Microns

Weave:

Plain

Chemical Name:

Poly Terephthalic Acid B Two Two Fat

Sewing:

Double Stitching Or Hot Melt

Breaking Strength:

4.3~9

Custom Processing:

YES

Oem:

Welcomed

Filter Area:

1.1（㎡）

Caliber:

133/155mm

The Proportion Of:

1.38

Tensilestrength:

20-50 KN/m

Material:

Polyester, Polypropylene, Nylon, Or Cotton

Work Temp:

100-300 Degree

Technology:

Nonwoven

Payment & Shipping Terms

Minimum Order Quantity

500

Price

2.32

Packaging Details

roll packing

Delivery Time

7-10

Payment Terms

D/A,D/P,L/C,T/T

Supply Ability

make to order

Stainless Steel Filter Cartridge for Industrial Dust Removal with 1.5-Year Warranty and High Dust Holding Capacity

Get Best Price

Video

P84 High-Temperature Resistant and Corrosion Resistant Dust Collector Filter Bag with Customizable Size

Get Best Price

Video

Industrial Filter Cloth with High Filtration Accuracy Customized Size and 1.5 Year Warranty for Liquid Filtration

Get Best Price

Acrylic Filter Bag with High Filtration Accuracy Low Operating Resistance and Strong Environmental Adaptability for Industrial Dust Removal

Get Best Price

Contact Now

Product Description

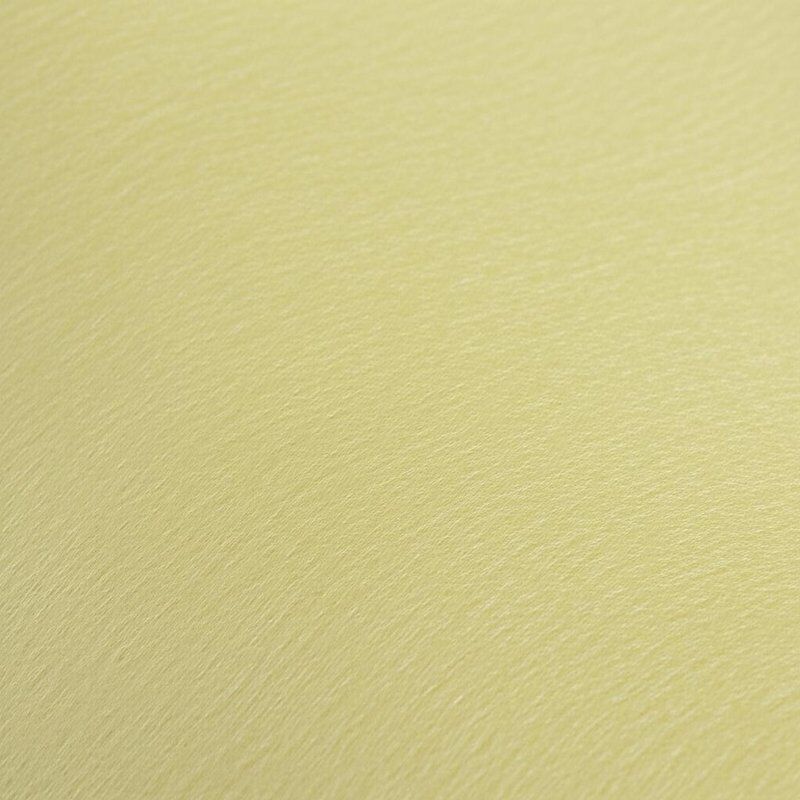

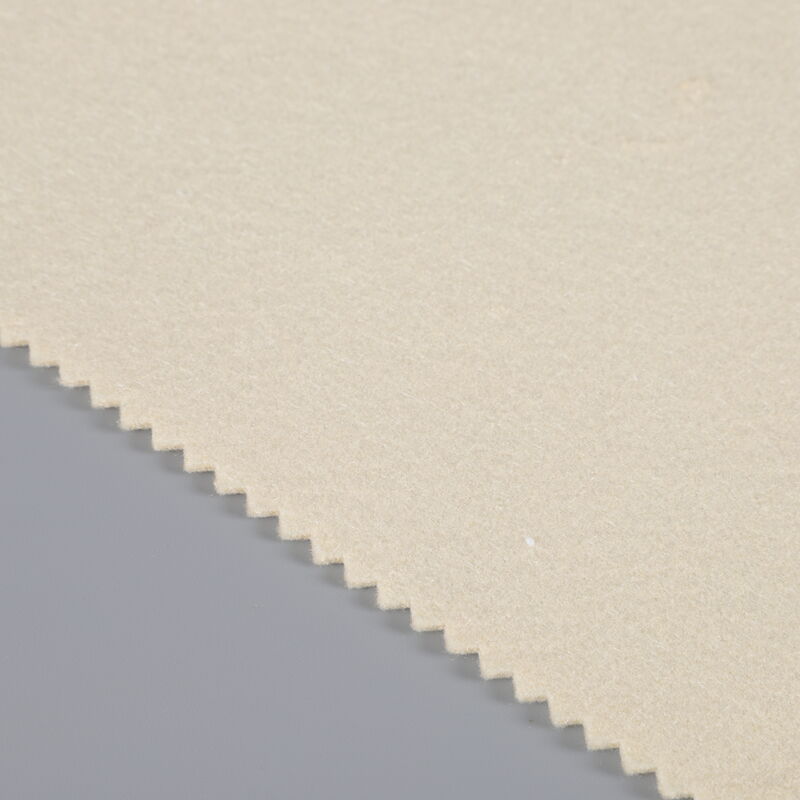

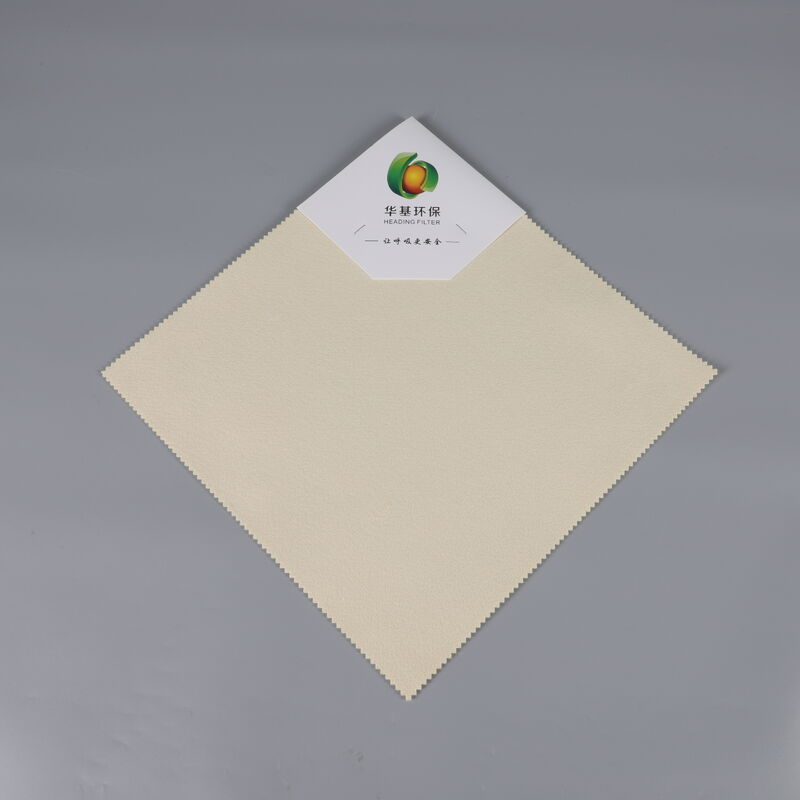

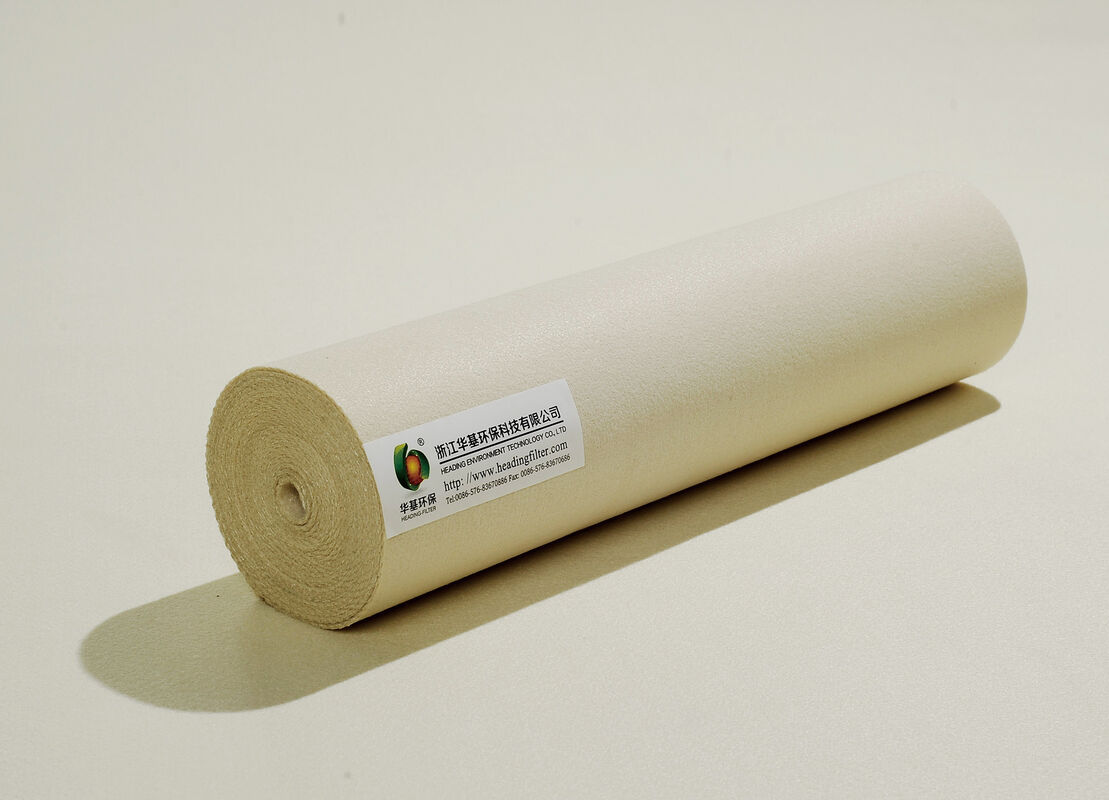

High Performance PPS Needle Felt

Technical Overview

Polyphenylene Sulfide (PPS) needle felt is a high-performance, non-woven filtration fabric manufactured through a precise needling process. Engineered for demanding high-temperature filtration applications where chemical resistance and thermal stability are paramount.

Key Characteristics

Excellent Thermal Stability: Maintains dimensional stability and mechanical integrity in continuous operating temperatures up to 190°C (374°F), with short-term exposure resistance up to 232°C (450°F)
Outstanding Chemical Resistance: Remarkable resistance to acids, alkalis, and organic solvents, making it suitable for filtering chemically aggressive flue gases. Inherently hydrolytic stable
Flame Retardancy: Inherently flame-resistant, meeting various industry standards for fire safety
Filtration Performance: Dense, porous structure with high filtration efficiency for fine particulate matter, achieving low emissions. Surface treatments can further enhance dust release and efficiency

Primary Applications

PPS needle felt is the filter media of choice for baghouses and cartridge filters in the following industries:

Coal-Fired Boilers / Power Plants: Filtering fly ash from flue gas
Waste Incineration: Filtering gases from municipal or industrial waste incineration
Cement Production: Used in kiln, raw mill, and clinker cooler baghouses
Pulp & Paper Industry: Recovery boiler applications
Chemical Process Industries: Filtration in processes involving acidic or corrosive environments

Important Operational Limitation

PPS is not suitable for environments with high oxygen (>15%) content at elevated temperatures (above 140°C/284°F), as it can undergo oxidative degradation. Its performance against certain strong oxidizing agents is also limited.

Technical Parameters

Parameter	Typical Range
Weight	500 - 600 g/m²
Thickness	1.8 - 2.5 mm
Tensile Strength (Warp/Weft)	>800 / >1200 N/5cm
Operating Temperature	Continuous: 150-190°C; Peak: 232°C
Fineness	Commonly 2.0 - 3.0 denier fibers
Surface Treatments	Optional singeing, calendering, PTFE lamination, or membrane coating

Conclusion

PPS needle felt represents a robust and reliable solution for high-temperature, corrosive gas filtration. Its unique combination of thermal resilience, chemical inertness, and fine filtration capability ensures long bag life, low maintenance costs, and high collection efficiency in challenging industrial settings. Proper selection requires careful consideration of the specific gas composition, temperature profile, and particulate characteristics of the application.
