Polyester Multifilament Air Slide Fabric 10mm To 1600mm

Place of Origin CN
Brand Name HUADING
Certification ISO9001:2015
Model Number HD-ASF-250MM
Minimum Order Quantity 100 metres
Price Negotiable
Packaging Details Customer request
Delivery Time 10-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000 meters per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Polyester Multifilament Weight(gsm) 3600~4400
Width (m) 10~2000mm Thickness 5-8mm
Air Permeability 90 L/m2.s+/- 10% Working Temperature 160℃
Filtration Accuracy 5000 Brand HUADING
High Light

Multifilament Polyester Air Slide Fabric


Multifilament Polyester Air Slide Fabric


Polyester Multifilament Industrial Filter Cloth

Leave a Message
Product Description

Polyester Multifilament Air Slide

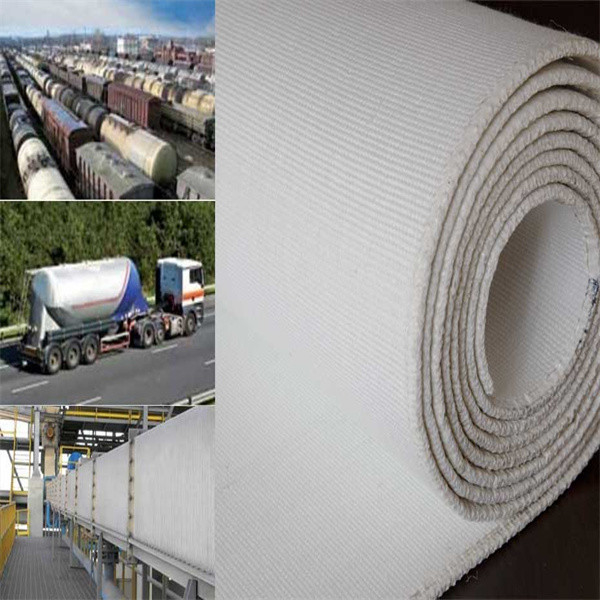

Polyester Multifilament Air Slide is developed by our factory. The product is made of polyester staple fiber, which is made of heavy-duty machine-woven integrated warp and weft threads. It is mainly used in the pneumatic conveying chute of powder materials such as cement and alumina, and is also suitable for pneumatic conveying devices of other powder and granular materials, such as trains, automobile bulk powder tankers, and bulk cement tankers. It is used as a gasification bed to mix the material with air to be gasified and has good fluidity to improve the conveying efficiency. Because the material is in a gasified state during the transportation process, it has good fluidity, and the equipment is not damaged by friction, which reduces the maintenance of the equipment. The material is transported in a closed chute, the material has no flying loss, the environment is not polluted, and there is a good environment. Hygienic environment! Product advantages: The chute canvas (breathable cloth) produced by our factory is made of high-quality heat-resistant and corrosion-resistant chemical synthetic fibers, which are woven on special equipment according to specific requirements. The temperature resistance can reach 180C in an instant, and 160C at a constant temperature about. The product is evenly ventilated, produced in accordance with strict air-permeable standards, and has undergone rigorous testing. It has the characteristics of uniform air permeability, smooth cloth surface, abrasion resistance, corrosion resistance, high tensile strength, high temperature resistance, no delamination, no gray return, and long service life.

Polyester Multifilament Air Slide Fabric 10mm To 1600mm 0

Polyester Multifilament Air Slide selection specifications:250mm 270mm 480mm 580mm

the specifications between 10mm to 1600mm can be produced at any time according to user needs; more than 1600mm of special specifications to be agreed in advance.



Polyester Multifilament Air Slide Fabric 10mm To 1600mm 1



These two kinds of air slide fabrics is very good distinction, polyester multi-filament yarn air slide fabric is more bright than polyester staple fiber air slide fabric. Polyester staple breathable cloth is commonly used in industry. Polyester multi-filament yarn air slide fabric is more wear-resistant and durable than ordinary polyester staple fiber air slide fabric, which meets higher requirements of customers.



1. Clear and smooth lines, stable size, without deformation.
2. Good air permeability, uniform and stable air flow.
3. Heat resistance, wear resistance, corrosion resistance, low moisture absorption.
4. Long service life, low energy consumption and minimal maintenance.
The production technology of polyester multi-filament yarn air slide fabric is different from that of polyester staple fiber air slide fabric, the production cycle to be a little longer. The requirements for equipment are higher and the investment is large, so polyester multi-filament yarn air slide fabric does not have a large range of manufacturers to produce in the market.
