250MM Polyester Air Slide Fabric for pneumatic conveying of cement

250MM Polyester Air Slide Fabric for pneumatic conveying of cement

250MM Polyester Air Slide Fabric

250MM Industrial Filter Cloth

Pneumatic Conveying Polyester Air Slide Fabric

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Polyester Staple Fiber
Lenght (m):
20-100. Width (m)
Width (m):
2m3/m2 Min:600pa-1200pa.<3m3/m2 Min:<2000pa
Breaking Strength (N/mm):
Warp Direction≧ 470N/mm ,Weft Direction≧ 350N/mm
Operating Temperature (℃):
Continuous Operation 220 ,Instant Operation 250
Payment & Shipping Terms
Minimum Order Quantity
100 metres
Packaging Details
Customer request
Delivery Time
10-15 Work Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100000 meters per month
Product Description

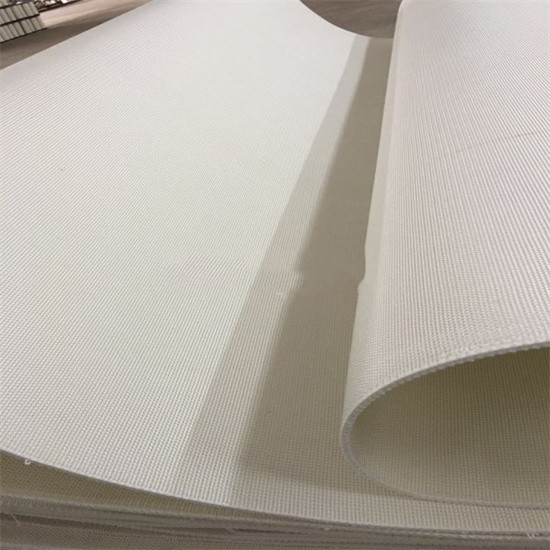

250MM Polyester Air Slide Fabric

250MM Polyester Air Slide Fabric for pneumatic conveying of cement 0

What is Air Slide Fabric?

HEADING adopts advanced technology to develop a new type of air-sliding cloth (air-sliding canvas). Air sliding cloth is used for pneumatic conveying of fine dry products such as cement and other raw materials. Airslide fabric is a solid fabric for air sliding.


250MM polyester air slide fabric is suitable for pneumatic conveying of cement, alumina and other powder materials. It is also suitable for pneumatic conveying devices for other powdery and granular materials. The slide belt is located in the middle of the slide. The powder material will enter the chute above the air conveyor belt. The material will flow to the lower side of the chute along the Airslide belt with the pneumatic blower. The product is unfolded between the material and the air chamber, the air chamber is on the bottom, and the material is on the top. Under the action of air pressure, the product passes through the product to make the material fluidized, so as to achieve the purpose of conveying.


Our air slide cloth is named as fluidized cloth, inflatable cushion, inflatable cloth, breathable cloth, air slide canvas, air slide belt cloth and so on.


Polyester air slide fabric:

According to customer requirements, we can provide airflow fabrics made of different raw materials, with different levels of breathability and thickness, depending on the application.


Common HEADING specifications: ASF250mm, ASF270mm, ASF480mm, ASF580mm; air sliding fabrics with other specifications of 10mm-1600mm can be produced at any time according to user needs. Special specifications above 1600mm need to be agreed in advance.


Product performance:

With a special and controllable air permeability, air slide fabric can help to improve the convey efficiency and also guarantee the mixed powders uniformity.


When powder transfering, the air slide fabric combined with pressed air in flume make the dry powder become to fluid particles, so the equipment won't be damaged from abrasion, can reduce many repair works. Further more, for the particles be transferred in air tight flume, they won't lost when transferred, it can help to save the cost, and won't pollute the environment.


Gyrosigma clear, smooth, dimensional stability, no deformation;Wear-resisting, corrosion resistance, high temperature resistant, no moisture absorption and therefore longer life;No moisture absorption, No cakingResistant to rotting and decompositionComplete unloading without residuesConsistent fluidization over the complete surfaceGood resistance to abrasionLow shrinkage even when used under hot and humid conditionsLow energy consumption, very little maintenance, reduce costs


250MM polyester air slide fabric introduction:

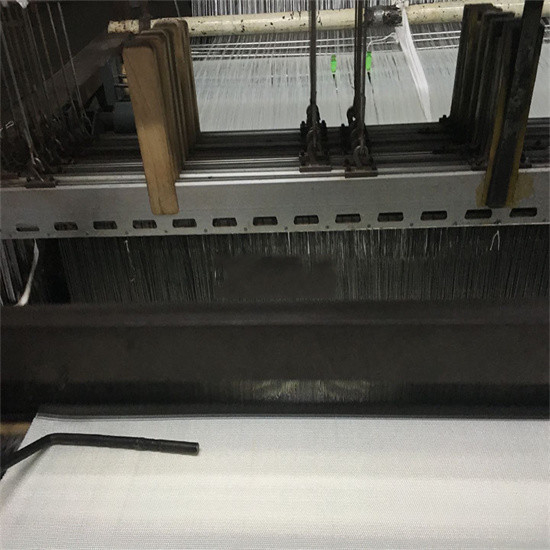

Airflow fabric is a multi-layer fabric made of high-quality polyester staple fiber, which is integrated by heavy-duty looms and interwoven in weft direction. It is a product developed by HEADING with advanced technology. We are also able to weave fabrics according to customers' specific requirements for breathability and mechanical strength.


Polyester air slide fabric specification table:

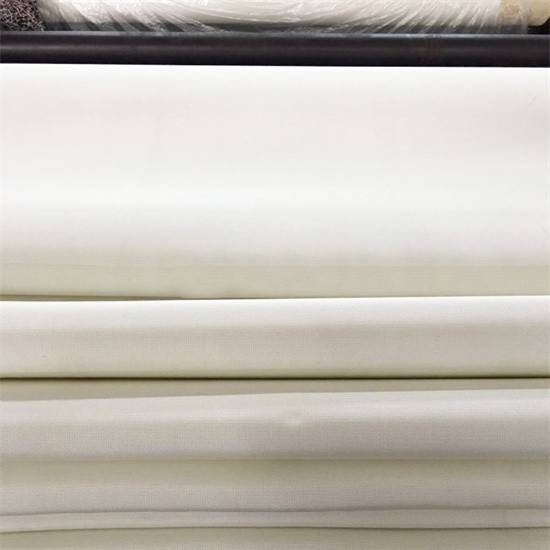

250MM Polyester Air Slide Fabric for pneumatic conveying of cement 1
