Anti-Acid Anti-Alkali Fiberglass Filter Bags FMS Pulse Jet Filter Media Fabric

Anti-Acid Anti-Alkali Fiberglass Filter Bags FMS Pulse Jet Filter Media Fabric

Anti-Acid Fiberglass Filter Bags

Anti-Alkali Fiberglass Filter Bags

Pulse Jet Filter Media Fabric

Place of Origin:

CN

Brand Name:

HUADING

Certification:

ISO9001:2015

Model Number:

HD-FMSFB

Contact Us
Request A Quote
Product Details
Material:
Fiberglass
Technology:
Nonwoven
Weight:
800gsm - 1000gsm
Width:
Max 220cm
Finish Treatment:
Heat Setting; Singeing; Calendering; Water&Oil Repellent; PTFE Membrane
Working Temperature:
Max 280℃
Filter Type:
Pulse Jet; Reverse
Application Industry:
Cement Plant; Steel Plant; Power Plant; Waste Incineration; Carbon Black; Chemical; Asphalt Mixing Plant
Payment & Shipping Terms
Minimum Order Quantity
50 Pieces
Price
Negotiable
Packaging Details
Polybag & Paper box
Delivery Time
10-15 Work Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50000 Pieces per Month
Product Description

Anti Acid Alkali FMS Filter Fabric Filter Media for Pulse Jet Bag Filter 280 Degree Working Temperature

Description:



FMS filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.





Specifications:



Fiber fiberglass staple fiber,P84 fibre,Nomex fiber
Scrim Fibergalss Scrim
Weight(gsm) 800
Thickness(mm) 2.5
Width(mm) ≤2.2m
Finish treatment Singeing, Calendering,Heat setting
Air permeability(L/m2.s) 200-300
Tensile strength(N/5cm) warp ≥3260
weft ≥3300

Tensile

elongation(%)

warp ≤10
weft ≤15
Temperature(°C) Continue 260
Instant 300

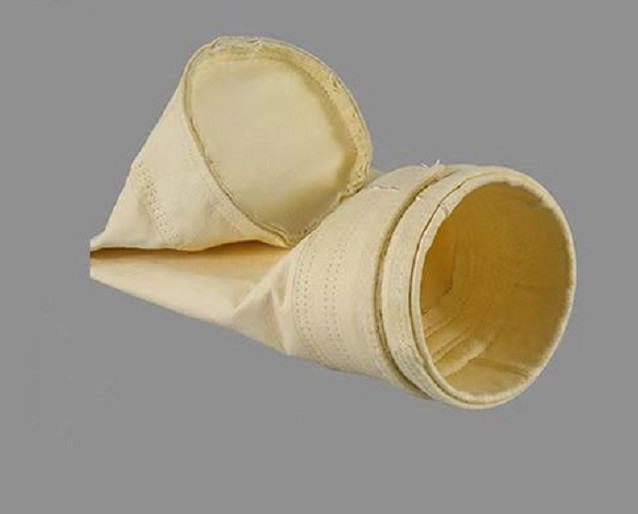

Anti-Acid Anti-Alkali Fiberglass Filter Bags FMS Pulse Jet Filter Media Fabric 0



Quick Detail:



High filtration efficiency ,long service life

Good anti abrasion

High temperature grade

Anti acid ,anti alkali, chemical resistance

High porosity ,good air permeability

Good price quality

Laminated compound,grads counterchange





Item Unit Parameter
Material Face:glassfiber mix P84 Scrim:GL
Grammas Per Square Meter g/m2 850±5%
Thickness mm 2.0±0.2
Air Permeability(200Pa) L/dm2.min 200~250
  Cont 260
Temperature Resistance Peaks 280
  Warp N/50*200mm ≥2800
Minimum Breaking Strength Weft ≥2800
  Warp % ≤10
Elongation at Break Weft ≤10
Surface Design Treatment Singeing,Calendering,Heat-set,PTFE treatment
Using Scope Cement klin head and tail ,Steel,Blast furnace gas





Notices:



FMS needle felt is one kind of high temperature resistant filter material with reasonable structure and excellent performance,it could be high temperature resistant,anti-abrasion,stable size,little elongation shrinkage ratio,high intension,also ultimate fiber of felt layer fiber,three dimensional micro pore structure,high porosity,small filter resistance to gas,it has higher speed and efficiency,Comparing with other high temperature resistant chemical fiber felt,it has the advantage of lower price,high temperature resistant,but due to high resistance, filtering efficiency is lower.





Applications:



Chemical plant Cement plant

Steel iron plant Melting plant

Carbon black plant Electricity Industry

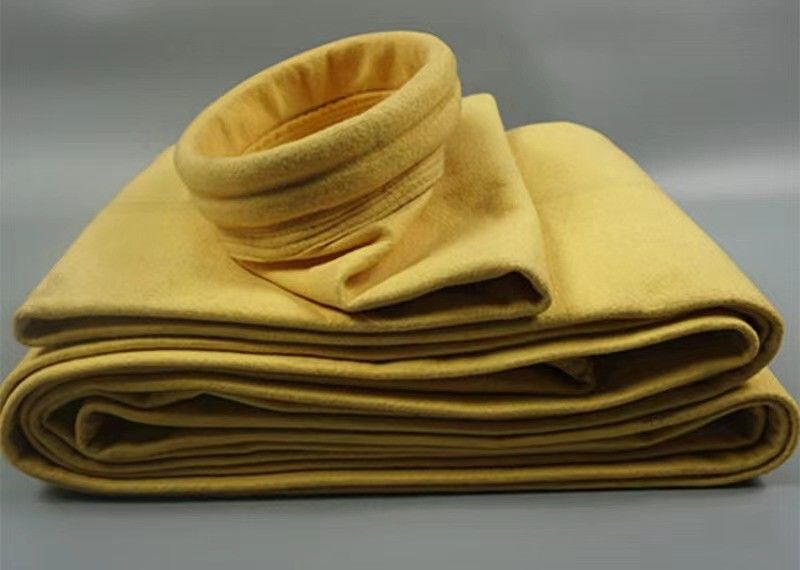

Anti-Acid Anti-Alkali Fiberglass Filter Bags FMS Pulse Jet Filter Media Fabric 1



Others:



We can supply following non-woven filter fabric:
1) Normal temperature resistant needle punched felt (PP, PET)
2) High temperature resistant needle punched felt (PPS, Fiberglass, P84, FMS)
3) Antistatic felt:
A) Blended polyester anti-static needle punched felt
B) Basic scrim anti-static needle punched felt
C) Blended polyester anti-static needle punched felt with anti-static basic scrim
4) Water and Oil Repellent Felt (PET)
5) PTFE Coated Felt(PP+PTFE, PET+PTFE)
6) Liquid Filtration Needle Punched Felt (PP,PET)

For more details,please contact me freely.
