Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-FMSFB

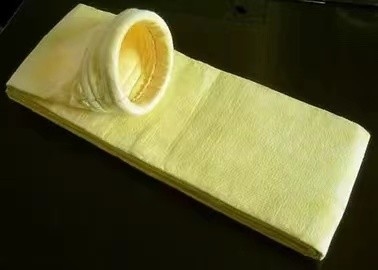

FMS High Temperature FMS Filter Bag For Cement Plant 130*5200mm With PTFE Membrane
Quick Detail:
High filtration efficiency ,long service life
Good anti abrasion
High temperature grade
Anti acid ,anti alkali, chemical resistance
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange
Description:
FMS filter media, including fiberglass needle felt and woven fiberglass filter cloth,because of it's high temperature resistant, anti-condensation,dimensions stability, dust stripping is good, and high filtration efficiency is widely used in metallurgy, cement, power generation, carbon black, coal-fired boilers, chemical industry and waste incineration industries.
Specifications:
| Fiber | fiberglass staple fiber,P84 fibre,Nomex fiber | |
| Scrim | Fibergalss Scrim | |
| Weight(gsm) | 800 | |
| Thickness(mm) | 2.5 | |
| Width(mm) | ≤2.2m | |
| Finish treatment | Singeing, Calendering,Heat setting | |
| Air permeability(L/m2.s) | 200-300 | |
| Tensile strength(N/5cm) | warp | ≥3260 |
| weft | ≥3300 | |
|
Tensile elongation(%) |
warp | ≤10 |
| weft | ≤15 | |
| Temperature(°C) | Continue | 260 |
| Instant | 300 | |
| Item | Unit | Parameter | ||||||
| Material | Face:glassfiber mix P84 | Scrim:GL | ||||||
| Grammas Per Square Meter | g/m2 | 850±5% | ||||||
| Thickness | mm | 2.0±0.2 | ||||||
| Air Permeability(200Pa) | L/dm2.min | 200~250 | ||||||
| Cont | ℃ | 260 | ||||||
| Temperature Resistance | Peaks | 280 | ||||||
| Warp | N/50*200mm | ≥2800 | ||||||
| Minimum Breaking Strength | Weft | ≥2800 | ||||||
| Warp | % | ≤10 | ||||||
| Elongation at Break | Weft | ≤10 | ||||||
| Surface Design Treatment | Singeing,Calendering,Heat-set,PTFE treatment | |||||||
| Using Scope | Cement klin head and tail ,Steel,Blast furnace gas | |||||||
Applications:
Chemical plant Cement plant
Steel iron plant Melting plant
Carbon black plant Electricity Industry
Power plant Asphalt plant
Others:
We can supply following non-woven filter fabric:
1) Normal temperature resistant needle punched felt (PP, PET)
2) High temperature resistant needle punched felt (PPS, Fiberglass, P84, FMS)
3) Antistatic felt:
A) Blended polyester anti-static needle punched felt
B) Basic scrim anti-static needle punched felt
C) Blended polyester anti-static needle punched felt with anti-static basic scrim
4) Water and Oil Repellent Felt (PET)
5) PTFE Coated Felt(PP+PTFE, PET+PTFE)
6) Liquid Filtration Needle Punched Felt (PP,PET)
For more details,please contact me freely.
