Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-PLTFB

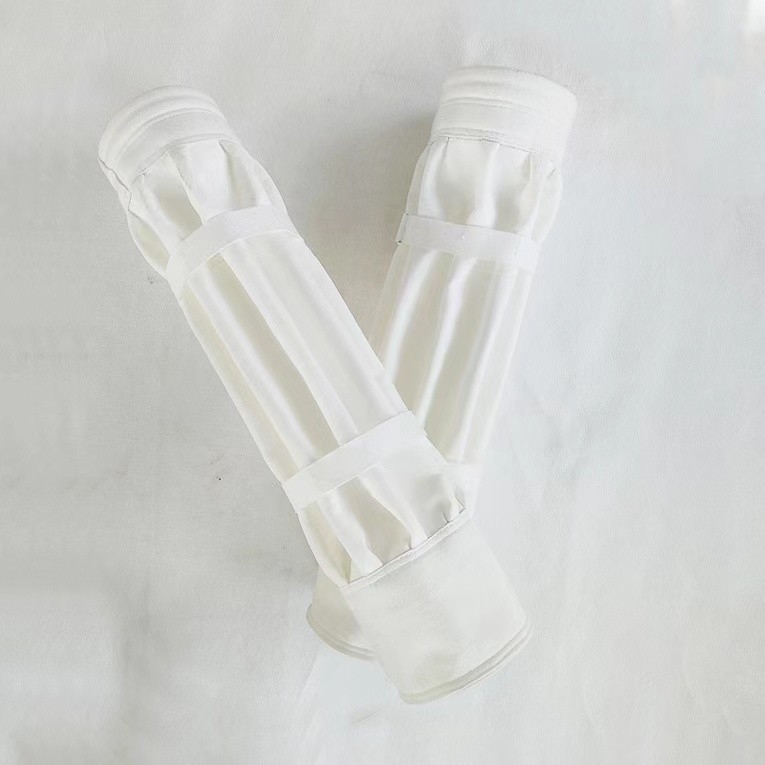

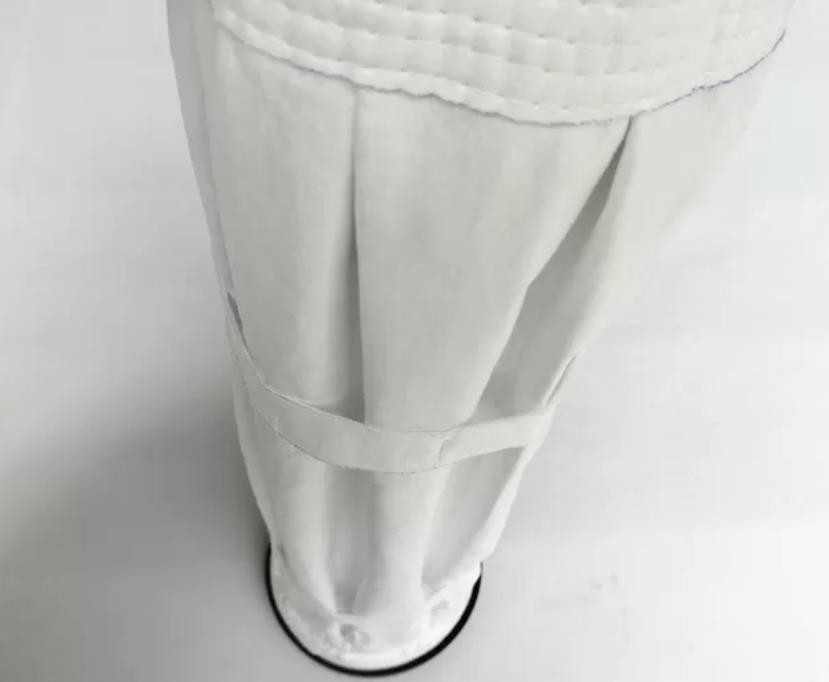

Non Woven PTFE Pleated Filter Bags Bead Cuff Head
Non-Woven Pleated Filter Bags Ptfe Filter Cloth Ptfe Pleated Filter Bags
Feature
(1) Professional: provide professional technical solutions .
(2) High efficiency: first, professional engineers butt service.
(3) Satisfaction: all technical solutions are satisfied by the customer .
(4) Service: whole process tracking service of product life cycle.
(5) Best professional team of lifestyle consumer electronics.
(6) Highly competitive prices.
| Style | star bag, pleat bag, extend surface/area bag | ||
| Pleats No. | 8/12 pleats | ||
| Material | Aramid / Nomex | ||
| Diameter | 150 | mm | |
| Length | TBD | mm | |
| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 150 | mm |
| Cuff | Type | bead cuff | |
| Width | 25-30mm | ||
| Thickness | 3-7mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 150 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter surface increase
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 |
| 12 pleats | 150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 |
