Star Filter Bag Dust Filter Pleat Bag Surface Extend Filter Bag Prima Flow Bag AD Flow Bag AD Plus Flow Bag
1. Specification

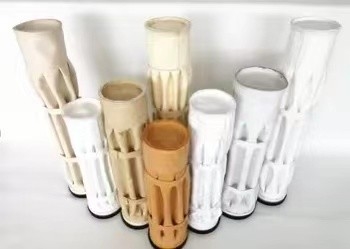

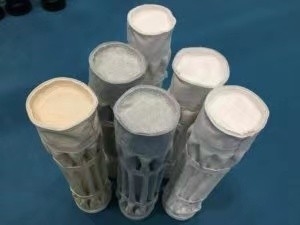

Star filter bags (Star bags) is a special design to extend the filter surface. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. It is also for new bag house with high level and strict emission requirement.The pleats are gathered at the top snap band so the StarBag can fit in the same cell plate hole as a standard bag of the same diameter thereby meaningfully reducing the air to cloth ratio. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Capacity: 300 per day (star filter bag only, ordinary dust bag excludes)
Optional fabric: PE (Polyester), PP (Polypropylene), PA (Nylon), Aramid(Nomex), Acrylic, Fiberglass, PPS, PTFE, P84, etc
Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on special treatment can be chosen
Star Bag Style: 8 and 10 and 12 pleats star bags
Bag Size: star dust bag diameters are 120mm, 130mm, 150mm, 155mm, 160mm and customized
Bag Head: seal cuff / groove snap / felt strip, bead cuff/ steel strip, etc can be chosen
Bag Body: Sewing or Hot sealing
Bag Bottom: Single or double bottom, with reinforcement or without reinforcement
2. Advantage
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
filter surface | Dianmter mm | Bag Length | |||||
1m | 2m | 3m | 4m | 5m | 6m | ||
8 pleats | 120 | 38.64 | 55.97 | 61.75 | 64.64 | 66.37 | 67.52 |
130 | 42.09 | 59.85 | 65.77 | 68.73 | 70.50 | 71.69 | |
150 | 54.06 | 73.31 | 79.73 | 82.94 | 84.87 | 86.15 | |
160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 | |
12 pleats | 120 | 70.91 | 92.28 | 99.40 | 102.96 | 105.10 | 106.52 |
130 | 74.82 | 96.67 | 103.95 | 107.59 | 109.78 | 111.24 | |
150 | 72.23 | 93.76 | 100.93 | 104.52 | 106.68 | 108.11 |
a. Significantly increase the air volume of existing dust collectors to increase production capacity
The use of pleated bags to retrofit existing precipitators eliminates the need to retrofit precipitator bodies and replaces existing bags and keels directly, increasing system filtration area by 50-150%, which is the best improvement program for improving the production efficiency and capacity of dedusting systems.
b. Greatly improve the collection efficiency of dust collectors, especially PM2.5 and PM10 ultrafine dust
The use of wrinkled bag instead of ordinary round or oval bag can greatly increase the system filter area, can directly reduce the air-cloth ratio, significantly reduce the system pressure and pulse frequency, thereby significantly reducing the system's dust emissions, especially ultra-fine dust emissions .
c. Significantly reduce system operation energy consumption and maintenance costs
The use of wrinkled bag instead of ordinary round or oval bag, the pressure drop of the system is greatly reduced, the energy consumption of the fan is greatly reduced; the injection frequency is significantly reduced, and thus the compressed air usage is significantly reduced, and the loss of the injection system components is also greatly reduced.
d. Extend the life of the bag
The use of pleated bags instead of ordinary round or oval bags, the unique combination of filter bags and keel completely avoids the fatigue damage to the filter bags caused by the ordinary keel transverse support rings. Combined with the lower running pressure and blowing frequency, the bag fatigue damage is greatly reduced life expectancy is greatly extended.
e. Using a new dust collector to significantly reduce the volume of the dust collector housing
The new dust collector uses a fold bag instead of an ordinary round or oval cloth bag. Under the same air-batch ratio, the dust collector box and pulse injection system can be greatly reduced, and the initial equipment investment of the injection system can be reduced while ensuring or improving the system efficiency.
3. How to choose star filter bags
Main features of the performance of star bags
Polypropylene | Polyester | Homopolymer Acrylic | PPS | Aramid | P84 | PTFE | Fiberglass | ||
Continuous Dry Heat Operation | 94ºC | 135ºC | 135ºC | 190ºC | 204ºC | 240ºC | 260ºC | 260ºC | |
Continuous Moist Heat Operation | 94ºC | 94ºC | 125ºC | 190ºC | 177ºC | 195ºC | 260ºC | 260ºC | |
Max Short Term Dry Heat | 107ºC | 150ºC | 150ºC | 232ºC | 240ºC | 260ºC | 290ºC 4 | 290ºC | |
Specific Density | 0.9 | 1.38 | 1.17 | 1.38 | 1.38 | 1.41 | 2.3 | 2.54 | |
Moisture Regain (20ºC and 65% r.humidity) | 0.10% | 0.40% | 1% | 0.60% | 4.50% | 3% | 0% | 0% | |
Supports Combustion | yes | yes | yes | no | no | no | no | no | |
Resistance | Biological (mildew, bacteria) | excellent | not effect | very good | not effect | not effect | not effect | not effect | not effect |
Alkalis | excellent | fair | fair | excellent | good | fair | excellent | fair | |
Mineral Acids | excellent | fair | very good | excellent | fair | very good 3 | excellent | very good | |
Organic Acids | excellent | fair | excellent | excellent | fair | very good 3 | excellent | very good | |
Oxidising Agents | good 1 | good | good | fair 2 | poor | very good | excellent | excellent | |
Organic Solvents | excellent | good | very good | excellent | very good | excellent | excellent | very good |
1)Polypropylene is attacked by UV light, and will dimensionally deform under unsupported load over 82ºC
2)PPS is attacked by strong oxidising agents (O2, NOx, Br2) - the presence of which, lower its recommended operating temperature
3)P84 is attacked by Sox in power station applications
4)PTFE will elongate under load at elevated temperature
4. Applications of the star filter bag in the bag house
PTFE: Cement factory, Iron & Steel factory, Power Plant factory, Waste Incineration factory.
P84: Cement factory, Iron & Steel factory.
PPS: Cement factory, Power Plant factory.
Aramid: Cement factory, Iron & Steel factory, Power Plant factory, Asphalt factory, Lime factory.
Fiberglass: Cement factory, Iron & Steel factory.
FMS: Cement factory, Iron & Steel factory, Power Plant factory.
Acrylic: Cement plants, Asphalt plants, Lime.
