Polypropylene Felt Pleated Filter Bags Bead Cuff Head P84 150mm Polyimide
Place of Origin | CN |
---|---|
Brand Name | HUADING |
Certification | ISO9001:2015 |
Model Number | HD-PLTFB |
Minimum Order Quantity | 50 Pieces |
Price | Negotiable |
Packaging Details | Polybag & Paper box |
Delivery Time | 10-15 Work Days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 50000 Pieces per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | P84 | Diameter | 150mm |
---|---|---|---|
Number Of Pleats | 8 | Head | Bead Cuff |
Metal Hoop | SUS 304 | Bottom | Double Layer |
Length | Customized | Application Industry | Steel, Power, Waste Incineration Flue Gas Filtration |
High Light | Pleated Filter Bags Bead Cuff,Pleated Filter Bags P84,Polypropylene Felt Filter Bags |
P84 Star Filter Bag P84 Pleat Dust Collect Bag 150mm Diameter Increase Filter Surface Bag
Specification
Star filter bags (Star bags) is named pleat bag or extend filter surface bag, a special design to extend the filter surface. The Star bags are designed and developed to be integrated into existing system and process without requiring costly and major equipment changes. Providing a wide range of star filter bags for bag house collector, which improve the performance, efficiency and bottom line of the bag house dust collector and flue.
Filtering settings that cause excessive downtime can be costly for a variety of reasons. Our new generation of PLEATED/STAR BAG components can reduce bag changes, reduce downtime and extend cycle time. These cylindrical pleated bags are designed to solve these problems.
Datasheet
Style | star bag, pleat bag, expand filter surface/area bag | ||
Pleats No. | 8 pleats | ||
Material | P84 | ||
Diameter | 160 | mm | |
Length | TBD | mm | |

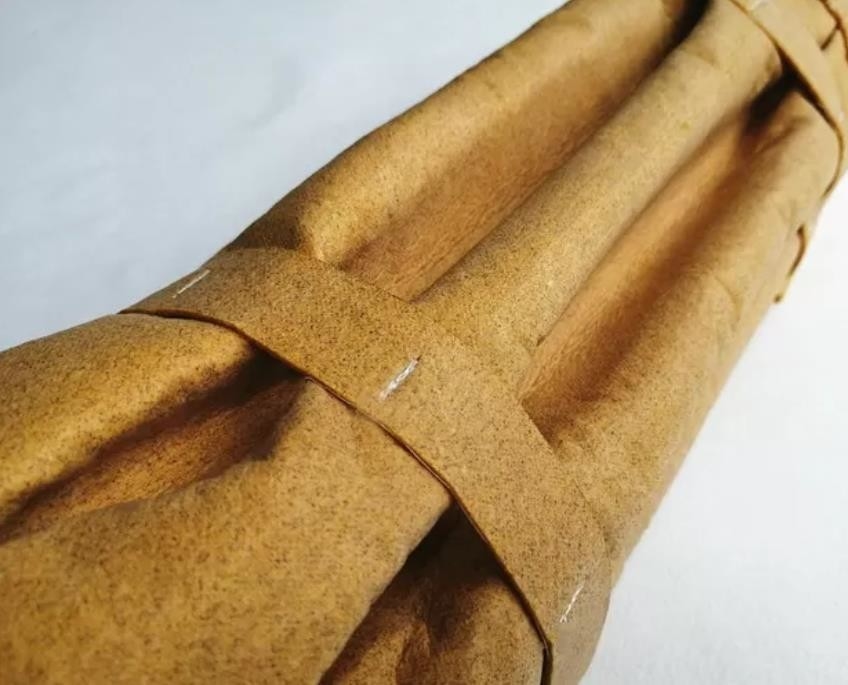

Strap / band | Type | cut felt strap | |
afixing | thread sewing to bag | ||
Width | 25 | mm | |
Distance | 250 | mm | |

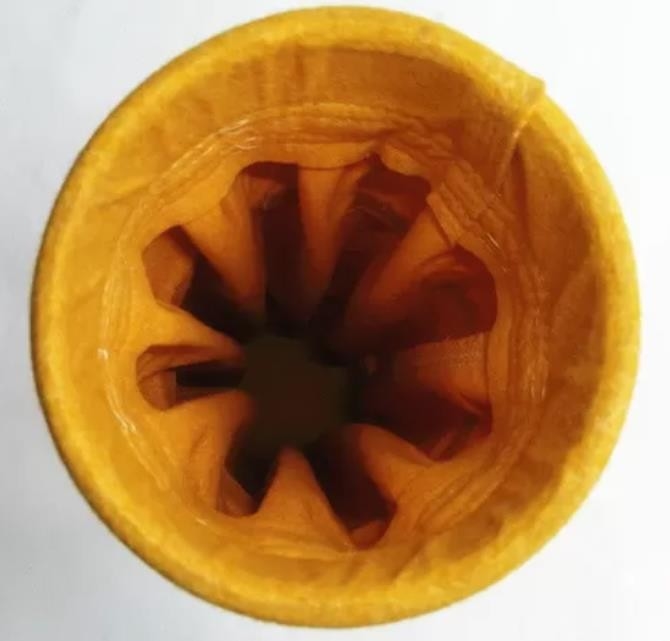

Top | Opening | 160 | mm |
Cuff | Type | bead cuff | |
Width | 25-30mm | ||
Thickness | 3-7mm | ||
Distance | 4-8mm | ||
Metal hoop | inside of top | yes | |
material | 304 stainless steel | ||
width | 25-30mm | ||
Fix | sew to bag body | ||
Boot / Bottom | Diameter | 160 | mm |
Height | 100-120 | mm | |
Reinforcement | two layers | ||
Bottom disc | two layers | ||
Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
Fix | sew to bag body | ||
Seam | Type | thread sewing | |
Bag panel/body | triple rows sewing | ||
Cuff panel | 2 double rows sewing | ||
boot upper | 2 double rows sewing | ||
boot bottom | double rows sewing | ||
Pack | Poly bag and pallet, or carton and pallet |
Filter area increasing
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
filter surface | Dianmter mm | Bag Length | |||||
1m | 2m | 3m | 4m | 5m | 6m | ||
8 pleats | 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 |
