Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-PLTFB

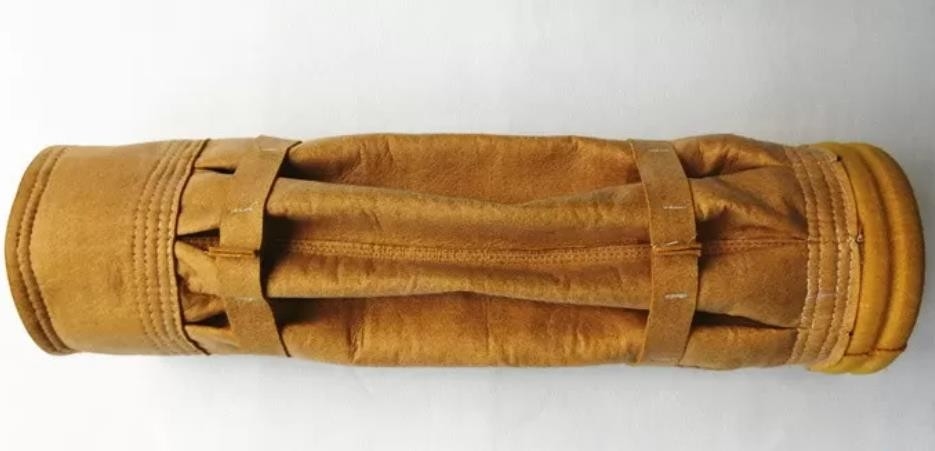

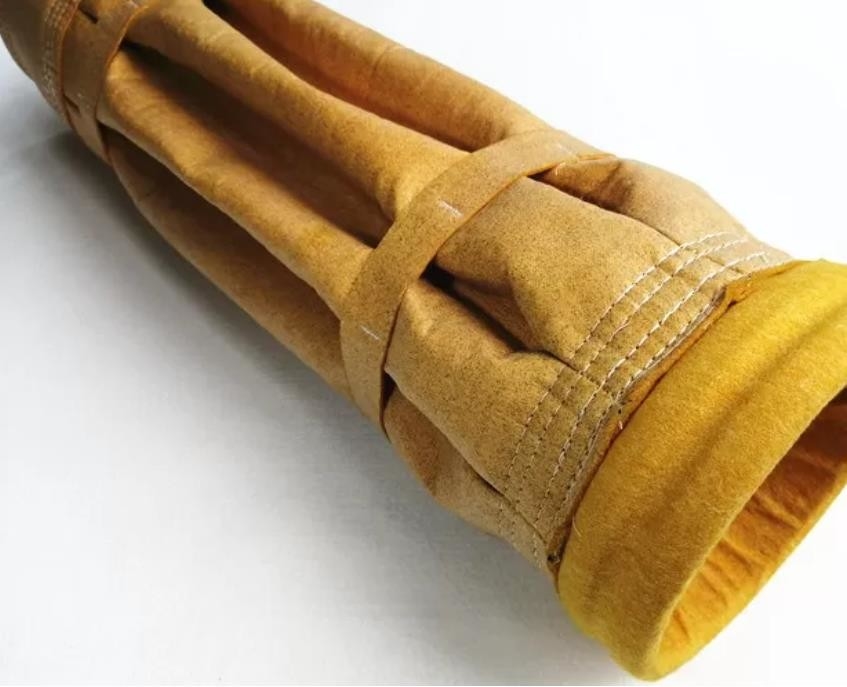

Two Layers Bottom Pleated Filter Bags P84 Filter Bag
160mm Diameter P84 Filter Star Bag P84 Pleat Dust Collect Bag Filter Surface Extended Bag
Information
Every year, more and more stringent environmental regulations are coming into effect. These new requirements are beginning to burden many aging dust collect infrastructures. In addition, many factories are seeking to increase productivity and force their existing systems to operate under increasing production demands. Usually, the easiest way to solve this problem is to upgrade to a newer, more efficient dust removal system.
Star filter bags (Star bags) is named pleat bag or extend filter surface bag, a special design to extend the filter surface, which is the solution of above problem.
Datasheet
| Style | star bag, pleat bag, expand filter surface/area bag | ||
| Pleats No. | 8 pleats | ||
| Material | P84 | ||
| Diameter | 160 | mm | |
| Length | TBD | mm | |
| Strap / band | Type | cut felt strap | |
| afixing | thread sewing to bag | ||
| Width | 25 | mm | |
| Distance | 250 | mm | |
| Top | Opening | 160 | mm |
| Cuff | Type | bead cuff | |
| Width | 25-30mm | ||
| Thickness | 3-7mm | ||
| Distance | 4-8mm | ||
| Metal hoop | inside of top | yes | |
| material | 304 stainless steel | ||
| width | 25-30mm | ||
| Fix | sew to bag body | ||
| Boot / Bottom | Diameter | 160 | mm |
| Height | 100-120 | mm | |
| Reinforcement | two layers | ||
| Bottom disc | two layers | ||
| Metal hoop | no, 20-25mm 304 stainless steel if yes | ||
| Fix | sew to bag body | ||
| Seam | Type | thread sewing | |
| Bag panel/body | triple rows sewing | ||
| Cuff panel | 2 double rows sewing | ||
| boot upper | 2 double rows sewing | ||
| boot bottom | double rows sewing | ||
| Pack | Poly bag and pallet, or carton and pallet | ||
Filter area increasing
The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,
Filter area increasing (%)
| filter surface | Dianmter mm | Bag Length | |||||
| 1m | 2m | 3m | 4m | 5m | 6m | ||
| 8 pleats | 160 | 73.57 | 95.26 | 102.49 | 106.11 | 108.28 | 109.73 |
