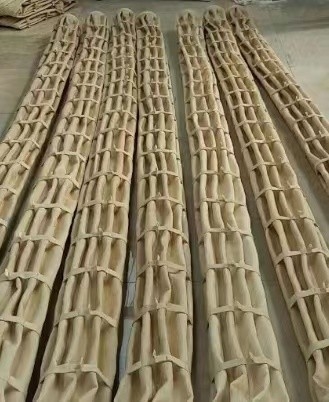

120mm Steel Plant Pleated Filter Bags , Aramid Nomex Dust Removal Bags

Place of Origin CN
Brand Name HUADING
Certification ISO9001:2015
Model Number HD-PLTFB
Minimum Order Quantity 50 Pieces
Price Negotiable
Packaging Details Polybag & Paper box
Delivery Time 10-15 Work Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50000 Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aramid; Nomex Diameter 120mm
Number Of Pleats 8 & 12 Head Seal Cuff
Metal Hoop SUS 304 Bottom Double Layer
Length Customized Application Industry Steel, Power, Waste Incineration Flue Gas Filtration
High Light

Steel Plant Pleated Filter Bags

,

120mm Pleated Filter Bags

,

Nomex Dust Removal Bags

Leave a Message
Product Description

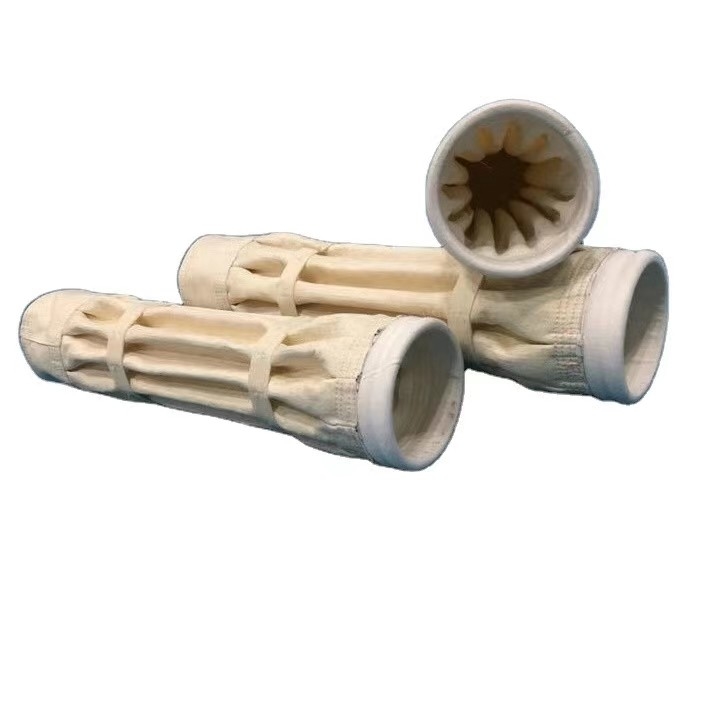

Aramid Nomex 120mm Pleated Filter Bags Extend Filter Surface Bag

Aramid Nomex Filter Star Bag Pleated Bag 160mm Extend Filter Surface Bag



120mm Steel Plant Pleated Filter Bags , Aramid Nomex Dust Removal Bags 0



Information

Style star bag, pleat bag, extend surface/area bag
Pleats No. 8 / 12 pleats
Material Aramid / Nomex
Diameter 120 mm
Length TBD mm
Strap / band Type cut felt strap
afixing thread sewing to bag
Width 25 mm
Distance 250 mm
Top Opening 120 mm
Cuff Type bead cuff / seal cuff
Width 10-12mm
Thickness 8-10mm
Distance 4-8mm
Metal hoop inside of top yes
material 304 stainless steel
width 25-30mm
Fix sew to bag body
Boot / Bottom Diameter 120 mm
Height 100-120 mm
Reinforcement two layers
Bottom disc two layers
Metal hoop no, 20-25mm 304 stainless steel if yes
Fix sew to bag body
Seam Type thread sewing
Bag panel/body triple rows sewing
Cuff panel 2 double rows sewing
boot upper 2 double rows sewing
boot bottom double rows sewing
Pack Poly bag and pallet, or carton and pallet

The pleated/star-shaped filter bag, as the name implies, is a pleated filter bag. When selecting the correct pleated/star-shaped filter bag, the number of folds, the depth of the folds, the choice of filter media, the coated star/pleated cage, and the cleaning system must be considered.



Filter surface extended (%)

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

Filter area increasing (%)

filter surface Dianmter mm Bag Length
1m 2m 3m 4m 5m 6m
8 pleats 120 38.64 55.97 61.75 64.64 66.37 67.52
12 pleats 120 70.91 92.28 99.40 102.96 105.10 106.52
