3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric

3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric
3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric

Large Image :  3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric

Product Details:
Place of Origin: CN
Brand Name: HUADING
Certification: ISO9001:2015
Model Number: HD-PAPMW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Polybag or Wooden box
Delivery Time: 15-30 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Square meter per Month

3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric

Description
Material: Polyester Tehnology: Woven Fabric
Weight: 300gsm - 2000gsm Width: Max 980cm
Finish Treatment: Heat Setting; Calendering Joint Type: Endless Seam; Pin Joint; Spiral Joint
Structure: 1 / 1.5 / 2 / 2.5 / 3 Layers Application Industry: For Forming Of Paper Making
High Light:

3 Layer Paper Machine Forming Wire

,

Paper Machine Forming Wire Polyester

,

Endless Triple Layer Fabric

Triple Layer Forming Wire / Triple Layer Paper Making Cloth / 3 Layer Forming Fabric For Paper Making

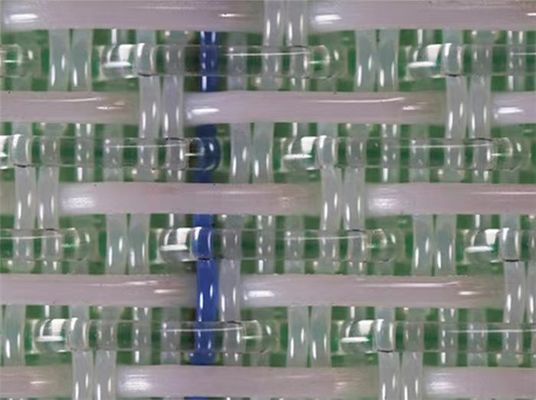

Triple layer forming fabrics have two independent single layer forming fabrics bound together by separated yarns. In the forming side, the yarns have a small diameter to increase the fiber support index. In the wear side, cross direction yarns have large diameter to improve the fabric life. The wear side is made with coarse mesh to improve stability and wear resistance. The

paper side is made with very fine yarns on the surface to optimize the paper sheet forming performance.



Advantage

1) Better paper sheet support and formation.
2) Increased pulp fines retention.
3) Decreased two sideness.
4) Improved stability and wear resistance.
5) Longer life time.







3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 0



3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 1

Product parameters

Brand:HD

Name:1-layer forming fabric

Material:PET

Classification:1-layer forming fabric is divided into 4-held, 5-held, 16-held and 24-held

Application:1-layer fabric is mainly used to produce cultural paper, wrapping paper, kraft paper, corrugated paper, etc

Advantage:It has the characteristics of good molding and long service life

Free samples,support customization



Product parameters

Brand:HD

Name:2.5-layers forming fabric

Material:PET

Classification:the 2.5-layer forming fabric mesh can be divided into 8 brown, 16 brown and 24 brown

Application:1-layer fabric is mainly used to produce printing paper, toilet paper, coated whiteboard paper, pulp board paper, etc

Advantage:It has the characteristics of good molding and long service life

Free samples,support customization

3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 2



3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 3

Product parameters

Brand:HD

Name:3-layer forming fabric

Material:PET

Classification:1-layer forming fabric is divided into 4-held, 5-held, 16-held and 24-held

Application:Multi-held 3-layer forming fabric is mainly suitable for printing paper, toilet paper and cigarette paper

Advantage:It has the characteristics of good molding and long service life

Free samples,support customization



Details of our Forming fabric

3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 4

3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 5

3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 6 3 Layer Paper Machine Forming Wire Polyester Endless Joint Triple Layer Fabric 7
