Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-PENF

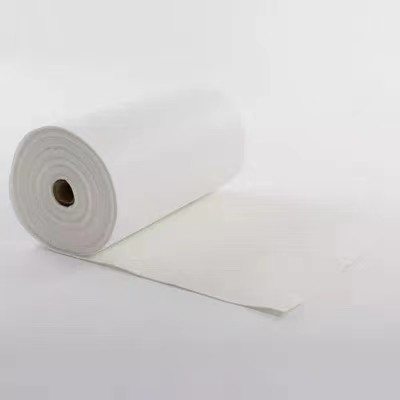

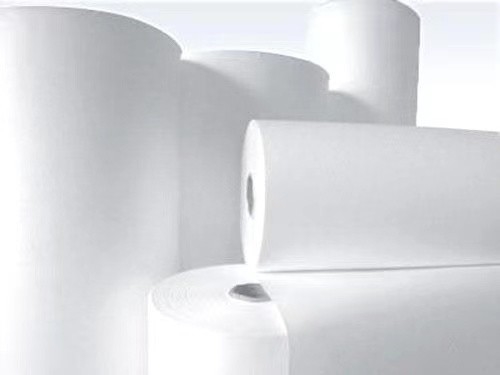

Nonwoven Polyester Needle Felt Filter Cloth For Dust Collector Baghouse Filter Bags Air Filtration
What is Polyester needle felt filter fabrics?
Polyester needle felt is the most widely used filter fabrics for normal temperature dust removal, thanks to its versatile property and high cost-effectiveness. Huading’s Polyester needle felt filter fabrics is made out by long fiber scrim, and fine fiber punching on the surface, in suitable density and thickness to ensure the optimal filtration efficiency and tensile strength.
Various after treatment include water and oil resistance, anti-static, PTFE membrane, etc to meet your different working conditions.
Advantage of Polyester needle felt filter fabrics
1. Good tensile strength
2. Excellent resistance to acid
3. Excellent resistance to solvent
4. Economical
5. Continuous working temperature <135℃, surge 150℃
Disadvantage of Polyester needle felt filter fabrics
Polyester is easy to hydrolysis in high temperature and high humidity working conditions, there is ester group on the polyester macromolecular chain, which is easy to rift in the tough high-temperature and high-humidity conditions, this causes the degradation of the filter material and reduces the service life.
Application of Polyester Needle Felt Filter Fabrics
1. Mining
2. Cement industry
3. Metal industry
4. Aluminum and non-ferrous metal industry
5. Ceramic industry
6. Quarrying
7. Plastic
8. Milk powder
9. Flour mill (used under dry conditions up to 150°C)
Properties
| Composition | PE/anti-static scrim | |
| Weight (g/m2) | 500 | |
| Thickness (mm) | 1.80 | |
| Air permeability (L/m2/s) | 200-350 | |
| Tensile strength (N/5×20cm) | Warp | 1000 |
| Weft | 1250 | |
| Tensile elongation (%) | Warp | <35 |
| Weft | <55 | |
| Broken strength (Mpa/min) | 2.40 | |
| Working temperature(℃) | 130 | |
| Short time working temperature (℃) | 150 | |
| Anti-acid | Fair | |
| Anti-alkali | Fair | |
| Anti-abrasion | Excellent | |
| The stability of water solution | Fair | |
| Finishing treatment | Singeing, calendaring | |
| Para | Weight (g/sm) | Thickness (mm) | Air Permeability (cbm/sm/min) | Tensile Strength
(N/5×20cm) |
Tensile Elongation
(%) |
Operating Temp.
(°C/℉) |
Max Surge Temp.
(°C/℉) |
Suitable P.H. Value | ||
| Model | / | / | / | Warp | Weft | Warp | Weft | / | / | / |
| PE-01 | 530 | 3.5 | 10 | 1000 | 1800 | 50 | 50 |
90/194 Dry Heat |
150/302 Dry Heat |
4-12 |
| PE-05 | 530 | 2.5 | 22 | 800 | 1000 | 60 | 60 | 4-12 | ||
| PE-10 | 480 | 2.2 | 24 | 800 | 1000 | 60 | 70 | 4-12 | ||
| PE-25 | 480 | 2.8 | 35 | 500 | 800 | 70 | 70 | 4-12 | ||
| PE-50 | 430 | 3.5 | 70 | 500 | 600 | 100 | 80 | 4-12 | ||
| PE-75 | 430 | 3.5 | 80 | 500 | 600 | 100 | 80 | 4-12 | ||
| PE-100 | 380 | 3.5 | 100 | 500 | 500 | 100 | 100 | 4-12 | ||
| PE-200 | 380 | 3.8 | 100 | 500 | 600 | 110 | 100 | 4-12 | ||
