775gsm 800gsm Filter Cloth Bag , Cement Plant Non Woven Filter Media ISO9001

775gsm 800gsm Filter Cloth Bag , Cement Plant Non Woven Filter Media ISO9001
775gsm 800gsm Filter Cloth Bag , Cement Plant Non Woven Filter Media ISO9001 775gsm 800gsm Filter Cloth Bag , Cement Plant Non Woven Filter Media ISO9001

Large Image :  775gsm 800gsm Filter Cloth Bag , Cement Plant Non Woven Filter Media ISO9001

Product Details:
Place of Origin: CN
Brand Name: HUADING
Certification: ISO9001:2015
Model Number: HD-FIBFB
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Polybag & Paper box
Delivery Time: 10-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Pieces per Month

775gsm 800gsm Filter Cloth Bag , Cement Plant Non Woven Filter Media ISO9001

Description
Material: Fiberglass Technology: Nonwoven; Woven
Weight: 400gsm - 800gsm Width: Max 220cm
Finish Treatment: Heat Setting; Singeing; Calendering; Water&Oil Repellent; PTFE Membrane Working Temperature: Max 280℃
Filter Type: Pulse Jet; Reverse Application Industry: Cement Plant; Steel Plant; Power Plant; Waste Incineration; Carbon Black
High Light:

775gsm Filter Cloth Bag

,

800gsm Filter Cloth Bag

,

Non Woven Filter Media ISO9001

Non Woven Boiler Cement Plant 775GSM Fiberglass Cloth Filter Bags
Fiberglass Filter Bags Specification:
1. Material: Fiberglass staple fiber
2. Scrim: with fiberglass staple yarn
3. Width: ≤2.2m
4. Thickness: 2.3-2.7mm
5. Weight: 800-900g/m2 ±10%
6. Temperature (ºC): Continue: 240, Instant: 280

Fiberglass Filter Bags Applications:
Fiberglass non woven filter media bags applications ranges in asphalt plant, incinerator, metallurgy, cement carbon black, liquid boiler, coal fire boiler dust filtration.

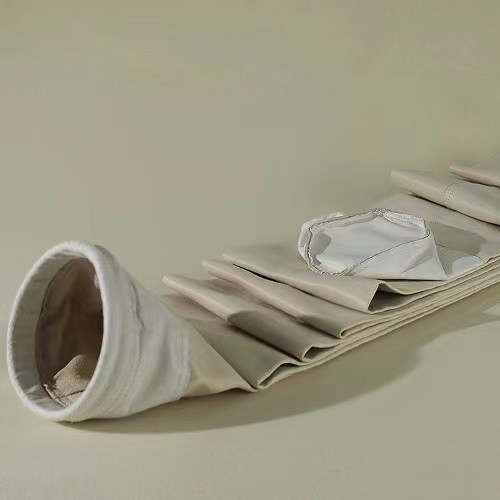

775gsm 800gsm Filter Cloth Bag , Cement Plant Non Woven Filter Media ISO9001 0






Fiberglass Filter Bags Advantages:

1. Good Temperature-Resistance. Max. Temp. 280 degree C.
2. High Filtration Efficiency: up to 99.9%
3. Excellent performance in Anti corrosion.
4. Fiberglass filters is the first choice for incinerator smoke, smoke in industries like metallurgy, cement, carbon black, liquid boiler, coal fire boiler.
5. Longer working time: more than 36 months.
6. Variety of finish treatments: Coating PTFE Membrane, PTFE Impregnation
7. Good heat resistance, flame retardant, anti-corrosion effect.
8. Used in dust filtration of high temperature, high acidity, high alkalinity, fine high
temperature, collection of valuable metal powder, high adhesive property etc.
9. Customized by order.
With rich practical experience and working R&D team, we can design and develop kinds of filter media to satisfy the complex and diverse working conditions.
10. Advanced production lines: Complete testing and testing methods are the assurance to the products' quality.

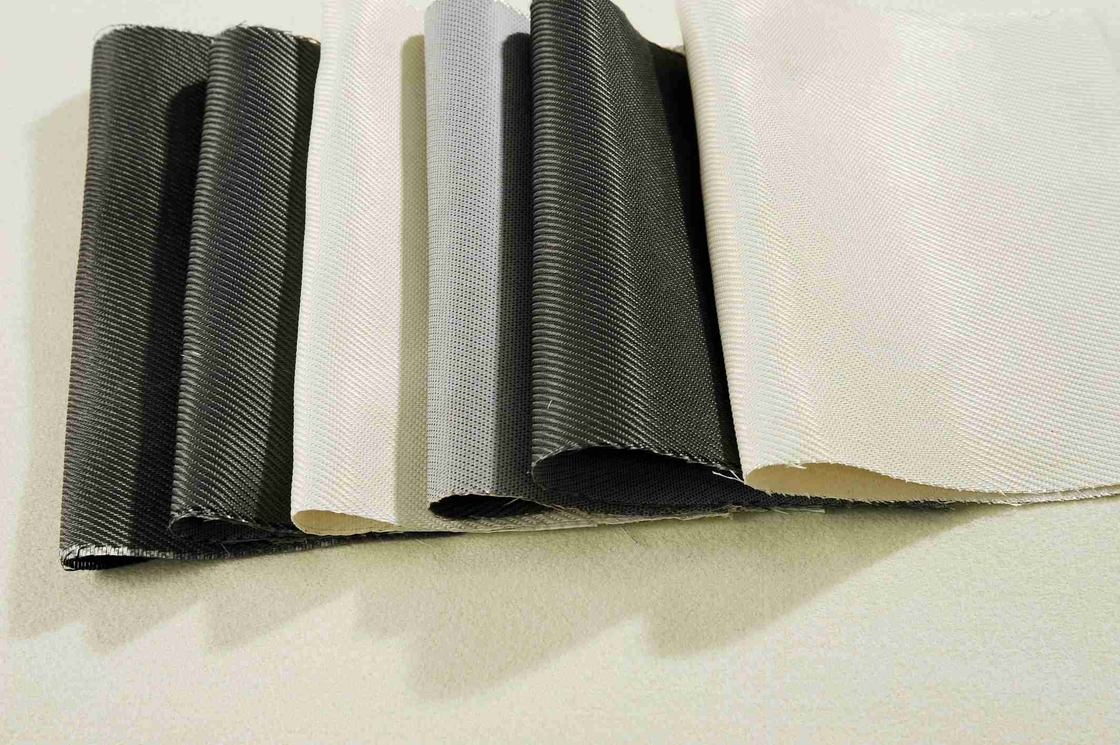

775gsm 800gsm Filter Cloth Bag , Cement Plant Non Woven Filter Media ISO9001 1



Fiberglass Filter Bags Physical Properties :

Weight(gsm) 850
Thickness(mm) 2.5
Width(mm) ≤2.2m
Finish treatment Singeing, Calendering, Heat setting
Air permeability(L/m2.s) 200-350
Tensile strength(N/5cm) warp ≥900
weft ≥1050
Tensile elongation(%) warp ≤35
weft ≤60
Heat shrinkage(%) warp ≤1.5
weft ≤1.0
Temperature(ºC) Continue 240
Instant 280


Fiberglass Filter Bags Chemical Properties:

Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent
hydrolysis stability Good
