Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-NOMFB

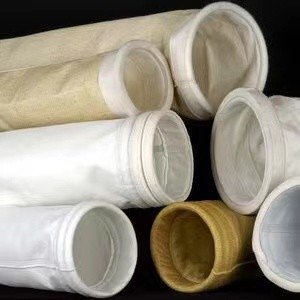

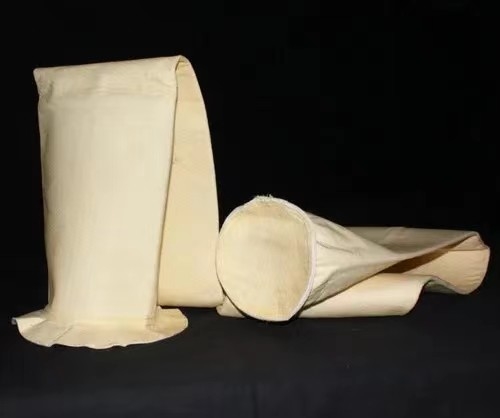

Asphalt Mixing Smoke Filter, Nomex Filter Bag D160 *L3050mm With Dimensional Stability
Asphalt mixing smoke filter Nomex filter bag D160XL 3050
Nomex filter bag for higher temperature dust filtration, widely applied in Asphalt mixing plant, Kiln smoke in cement plant, steel melting furnace smoke and so on.
NOMEX filters offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long wear life.
Speciality
1. High Temperature resistant
2. Resists flexing and abrasion
3. Effect of moisture
4. Good chemical resistance
5. Dimensional Stability
6. Flame resistance
The technical data of Nomex needled felt
Nomex filter bag, Nomex filter, Aramid filter, Aramid bag filter, Nomex bag filter.
Specifications:
| Article Name | Nomex needled felt | |
| Ingredients | Fiber | 100% Nomex |
| Scrim | 100% Nomex | |
| Weight | g/m2 | 500 |
| Thickness | mm | 2.1 |
| Density | g/m³ | 0.24 |
| Permeability | L/dm2.min | 150 |
|
Tensile breaking strength(N/5cm) |
Warp | ≥800 |
| Weft | ≥1000 | |
| Elongation @200N/5cm | Warp | <5 |
| Weft | <5 | |
|
Maximum shrink of 90 mins |
Temperature(°C) | 250 |
| % | ≤1 | |
| Service Temperature(°C) | Continuous | 204 |
| Instant | 220 | |
| Finishing |
Singeing, calendaring, Water repellent, PTFE membrane |
|
Competitive Advantage:
1.High Temperature resistant
2.Resists flexing and abrasion
3.Effect of moisture
4.Good chemical resistance
5.Dimensional Stability
6.Flame resistance
OEM service, just let us know your request, we will give exact recommendation .
