Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-NOMFB

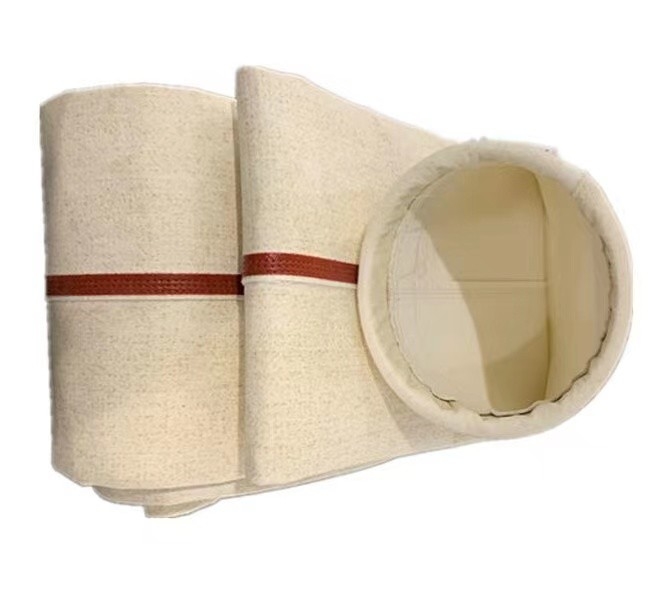

Dust collector filter bag Nomex Filter bags Nomex needle felt
nomex filter bag
1.100% Meta-aramid /nomex fiber
2.High tensile strength
Nomex filter bag for higher temperature dust filtration, widely applied in Asphalt mixing plant, Kiln smoke in cement plant, steel plant blast furnace smoke and so on .
NOMEX filters offer one of the best total economies in a filtrationsystem because of higher air to cloth ratios, higher temperaturecapability, and a long wear life.
Introduction:
Nomex filter bags are made of 100% Meta-aramid /nomex fiber, it is the best choice for asphalt plant dust collector, which are of metamax filter bags, aramid filter bags or baghouse filter bags.
Applications:
Being Metamax filter bags, nomex filter bags are widely used in asphalt industry, cement industry, chemical industry,Iron and steel industry, themal power industry, Aluminum industry, etc.
Features:
Nomex filter bags features excellent anti-anrasion, good anti-acid and good anti-alkali , and anti-high temperature.
Advantages:
1.With high tensile strength and low tensile elongation
2.Applied in continuous temperature 204℃, works well .
3.As nomex filter bags, it is largely used in asphalt plants.
4.With good air permeability and also can be adjusted by customers' specific request
5.Being baghouse filter bags, they are installed in baghouse and with high-efficiency filtration.
Specifications
1.Material :with100% Meta-nomex fiber
2.Scrim: with meta-aramid /nomex staple yarn
3. Finish treatment with singeing, calendering and heat setting.
4.Air permeability (l/m2/s): 150~300
5.Temperature (℃): Continue: 204, Instant: 220
Specifications:
Article Name | Nomex needled felt | |
Ingredients | Fiber | 100% Nomex |
Scrim | 100% Nomex | |
Weight | g/m2 | 500 |
Thickness | mm | 2.1 |
Density | g/m³ | 0.24 |
Permeability | L/dm2.min | 150 |
Tensile breaking strength(N/5cm) |
Warp | ≥800 |
Weft | ≥1000 | |
Elongation @200N/5cm | Warp | <5 |
Weft | <5 | |
Maximum shrink of 90 mins |
Temperature(°C) | 250 |
% | ≤1 | |
Service Temperature(°C) | Continuous | 204 |
Instant | 220 | |
Finishing |
Singeing, calendaring, Water repellent, PTFE membrane |
Competitive Advantage:
1.High Temperature resistant
2.Resists flexing and abrasion
3.Effect of moisture
4.Good chemical resistance
5.Dimensional Stability
6.Flame resistance
OEM service, just let us know your request, we will give exact recommendation .
