Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-PEFB
Polyester Filter Bag For Dust Collector System, Cement Plant Crusher Filter Bags
Dust Collector Bag, Dust Filter Bag, Bag Filter.
Description:
Cement plant crusher filter bag, Polyester filter bag, Polyester filter bags are carefully fabricated and sized to ensure ease of installation and change-out. Generally, dust collector filter bags are designed to be mounted and firmly into place with a snap band, corded cuff, or clamp to ensure dust type seal.
Various coatings and finishes can be applied to either side of the dust collector Polyester filter bag to enhance cleaning and efficiencies, as well as prolonging service life. Ground wire, anti-collapse rings, and other options can easily be incorporated into bag construction. can custom fabricate various types of attachments to work with your specific shaker mechanism, whether a loop, eyelet, grommet, or other device.
Filter bags, dust collector bag, dust filter bag, dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.

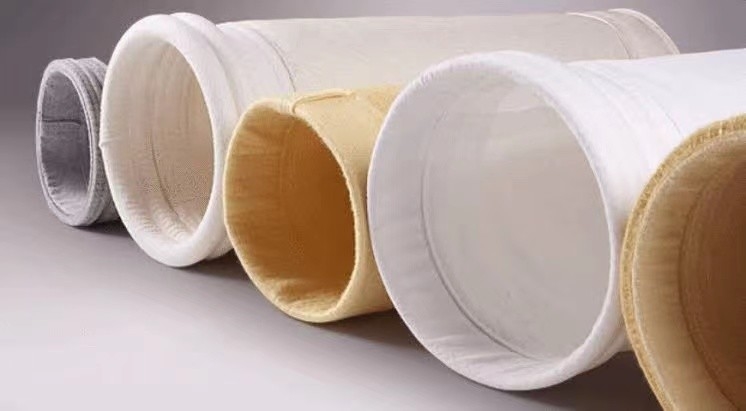

The main type of dust filter bags including cement kiln filter bag ,cement plant crusher filter bags, cement mill filter bag, P84 filter bag, Polyimide filter bag, PTFE filter bags, Acrylic filter bags, Polyester filter bags, dust filter bag, bag filters, dust collector bags.
Applications:
Coal industry, cement industry, asphalt mixing industry, carbon black industry, chemical industry, power plants, smelting industry, etc.
It can be continuously used in smoke and gas filtration in asphalt factory, cement kiln, waste incinerator, fluid boiler, and coal-burning boiler etc.
Specifications
Media | Weight(g/m2) | Material Weaving/Scrim |
Thickness (mm) |
Temperature continuous/Max |
Surface treatment |

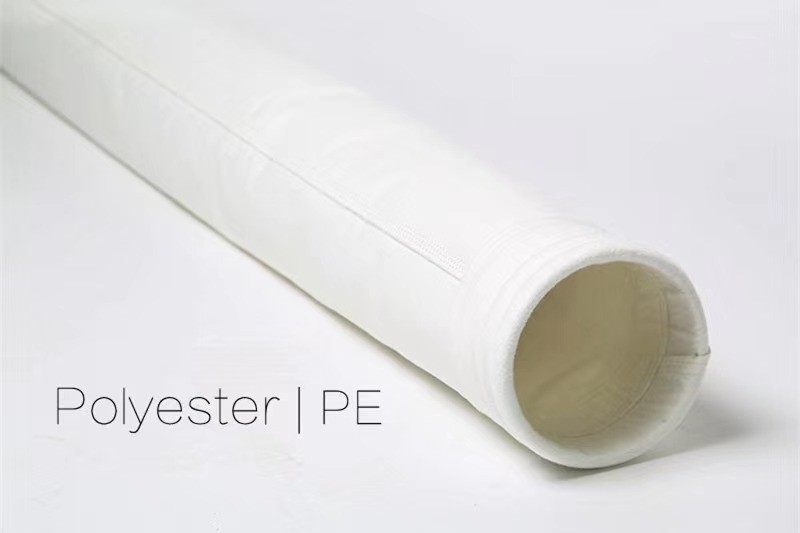

Polyester filter felt | 600g/m2 | PE/PE | 1.9 | 135 /150 | singed on one side |
Ployster,oil and water, dirt repellent finish filter |
550g/m2 | PE/PE | 1.7 | 135 /150 | singed on one side oil and water repellent finish cleanability supporting finish |
Polyster+antistatic | 550g/m2 | PE/PE | 1.7 | 135 /150 | singed on one side , antistatic |
PPS high-temperature resistant | 550g/m2 | PPS/PPS | 1.7 | 190 /200 | singed on one side |
PTFE high-temperature resistant corrosion prevention |
700g/m2 | PTFE/PTFE | 1.2 | 250 /280 | singed on one side , corrosion prevention |
Polyster+PTFE membrance | 550g/m2 | PE/PE | 1.7 | 135 /150 | singed on one side,PTFE membrance |
P84 high-temperature resistant | 550g/m2 | P84/P84 | 2.8 | 240 /260 | singed on one side corrosion prevention |
FMS high-temperature resistant | 550g/m2 | FMS/FMS | 2.2 | 200 /200 | singed on one side |
