Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric

Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric

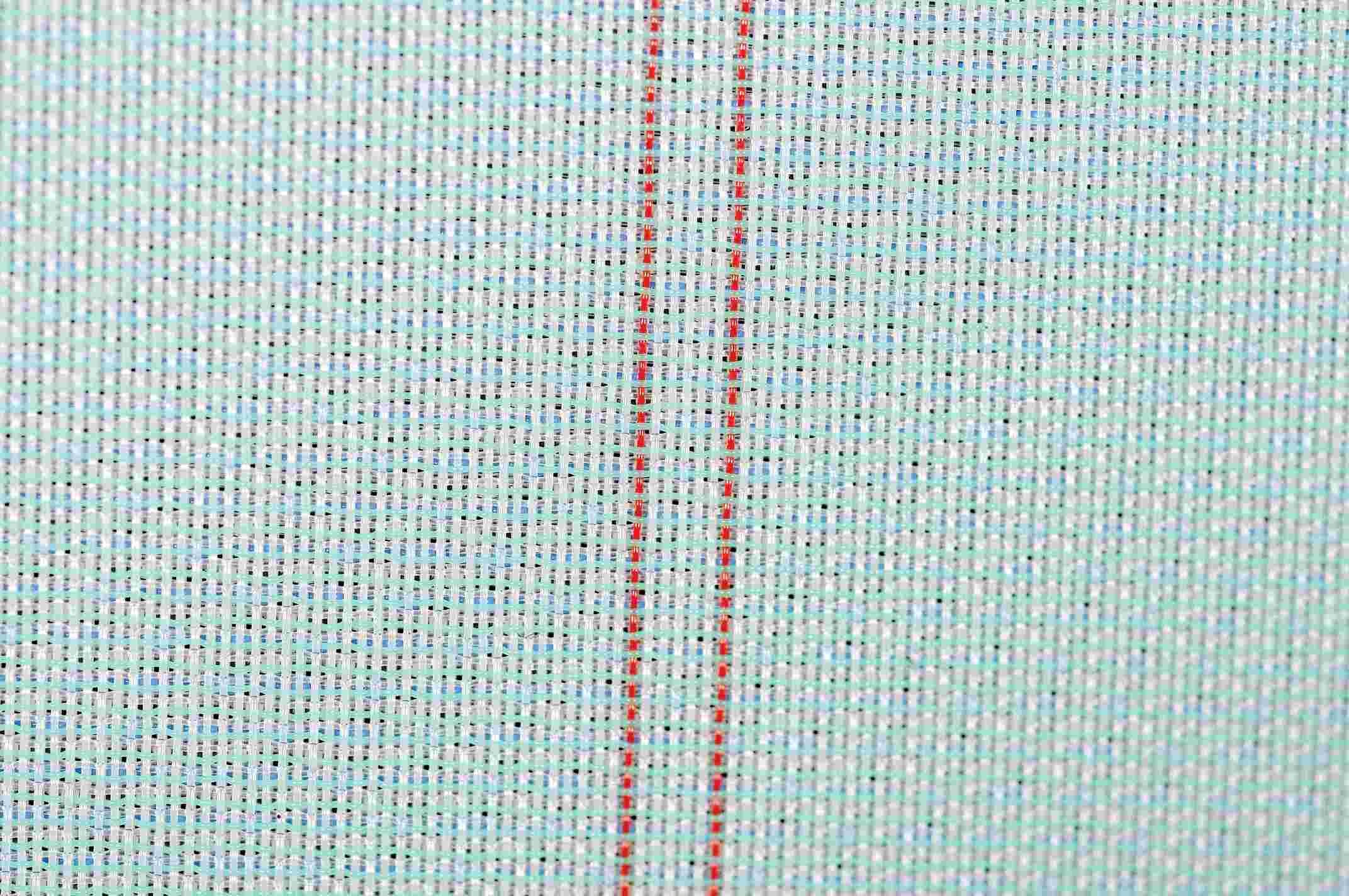

Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric

Large Image :  Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric

Product Details:
Place of Origin: CN
Brand Name: HUADING
Certification: ISO9001:2015
Model Number: HD-PAPMW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Polybag or Wooden box
Delivery Time: 15-30 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Square meter per Month

Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric

Description
Material: Polyester Technology: Woven
Weight: 300gsm - 2000gsm Width: Max 980cm
Finish Treatment: Heat Setting; Calendering Joint Type: Endless Seam; Pin Joint; Spiral Joint
Structure: 1 / 1.5 / 2 / 2.5 / 3 Layers Application Industry: For Forming Of Paper Making
High Light:

Spiral joint Paper Machine Clothing

,

Endless Paper Machine Clothing

,

SSB Forming Fabric

Polyester Forming Wire / Paper Machine Cloth / SSB Paper Making Wire / Dryer Screen For Paper Making Industry



What is Forming wire?



The forming wire of paper machine clothing (PMC) are playing a crucial role to dewater the pulp and form the paper sheet, support the sheet as it formed and carry to the next pressing section during the paper production. It’s composed of one or two endless fabric loops. Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric 0



A properly designed constructed and maintained forming wire will help the former produce a sheet that meets end-products specification at an acceptable production rate. In addition to excellent fiber support, efficient dewatering property, make the smooth surface of the sheet, the forming wire also has good running stability and abrasion-resistant capacity. Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric 1



Forming Wire Category



Forming wire for the paper machine are made by weaving together yarns oriented in the machine direction (MD) and cross-machine direction (CD). There are many different weave patterns but they can be grouped into four general categories or styles based on the number of CD yarn layers.

Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric 2 Single-layer, one set of CD yarns woven together with one set of MD yarns.



Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric 3 Double-layers, two sets of CD yarns stacked on top of each other woven together with one set of MD yarns, to enhance the abrasion resistance property and fiber support.



Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric 4 Two and a half layers – The double-layer forming fabrics has a flaw of the poor balance of the dehydration efficiency and fiber support, so two-layer and half come out. Additional CD yarns typically smaller in diameter added to the top layer of a double layer fabric to provide better fiber support, also expands the space and enhances the dehydration ability and service life.



Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric 5 Triple-layer forming wire has congenital insufficiency. First, the upper layer and the bottom layer are easily dislocated due to the force or damage of the connecting line or even “divided” and scrapped. Second, the bonding line has a negative effect on both forming and dehydration. In order to overcome these shortcomings, we have the self-supported binder (SSB) forming wire. The SSB structure utilizes the upper weft yarn to combine the bottom layer directly, without the additional binding yarns, which comprehensively maintains the advantages while overcoming the deficiencies of the three-layer wire.





Forming Wire Monofilament Yarn Material



To avoid the blemish on the paper sheet, the most important requirement of monofilament is uniformity diameter over the entire length of the yarn.
High tenacity polyester (PET) monofilament yarns are used in the warp (MD) to provide the required high tension of the forming fabrics, and the diameter of MD yarn usually between 0.12 to 0.30 mm.
The monofilament yarn in the weft (CD) of the paper side is usually 100% polyester in high density to get better fiber support, while the mechanical (bottom) layer is composed of 50% polyester and 50% nylon in thicker diameter to ensure better wear resistance property. Nylon monofilament provides good abrasion resistance, but it’s not stable in hydrolyzed as PET under humidity conditions, so it will not exceed 50% typically. The diameter of the weft (CD) yarn is usually between 0.11 and 0.45 mm.



Main Property of Forming Wire

Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric 6 A properly designed constructed and maintained forming fabrics will help the former produce a sheet that meets end-products specifications at an acceptable production rate. The variables design and construction of paper machine forming fabrics influence overall sheet quality.



The main property of Forming fabrics is as follows:



1). Dehydrate property, expressed parameter by air permeability and Drainage Index (DI). The pulp concentration is roughly 0.4%~1%, that is, more than 99% of the pulp is water, and about 96% of the water is dewatered in the forming section. The forming fabric has to dehydrate a huge volume of water in a short span of time.


2). Fiber support capacity: expressed by the Coefficient of Fiber Support(FSI). Good forming fabrics not only need to drain the water rapidly but also have to support the fibers on the surface to form a sheet. Good fiber support of the forming fabric improves the sheet characteristics such as flatness, smoothness, printability and strength properties, also avoids fiber embedding or clogging of the forming fabric, reduce the loss of fine fibers and fillers.


3). Mechanical property: The mechanical property of a forming fabric includes:
a) The transmission ability to transfer the sheet to the press section on the paper machine, and the ability to guide and drive the forming fabric itself.
b) Stability in lateral to ensure good sheet flatness of the side part, and stability in longitudinal to enhance efficiency and running property.
c) Good stiffness which will increase the transfer capacity of the paper machine and efficiency.
d) Excellent wear resistance make the forming fabric to be long service life.



Features of Huading's Paper Machine Wire


The running property of the forming wire and the quality of the formed sheet depend on the retention rate and forming of the fiber. Huading's Forming wire has the features of below:

Endless Spiral Joint Paper Machine Clothing , SSB Forming Fabric 7

1). Good and properly designed woven structure, excellent drainage efficiency and fiber support, easy clean and maintain.
2). Made out by the top quality of raw material, which has even yarn diameter, good strength and wear resistance property and longer service lifetime.
3). Woven by Texo looms to achieve a highly precise and smooth surface.
4). Max. width 13.5M.
5). Huading have a complete portfolio of the paper machine clothing, the single to triple layer of forming fabrics.
6). Endless seam by automatic seaming machine, no-marking and has nearly the same property as the fabric surface.
7). Heat setting by Juergens oil roller heat setting machine to anti-deforming and better dimensional stability, low elongation, smooth running performance.
8). The formed sheet has a non-marking surface, high acceptable rate.
