Place of Origin:
CN
Brand Name:
HUADING
Certification:
ISO9001:2015
Model Number:
HD-PLTFC

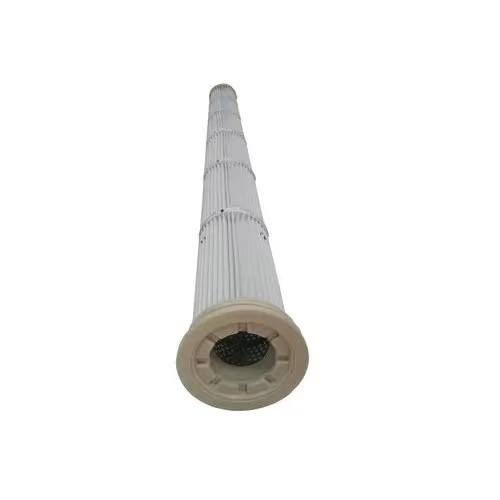

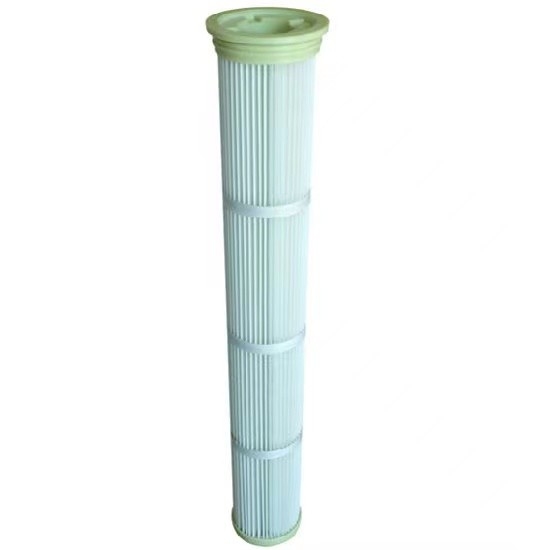

UTR Top Loaded Filter Cartridge / UTR Top Loaded Pleated Filter Elements
The structure of polyurethane molded top and bottom covers,
Adopt 100% continuous long fiber spun-bonded polyester filter material,
Continuous supporting inner mesh without corrosion, rubber or food-grade silicone seal ring,
No metal parts touch with the dusty gas, green and environmental protection.
The continuous operating temperature of 107℃.
The applicable tube sheet thickness of 5mm.
Optional after-treatment: PTFE membrane covering, anti-static coating, oil-water proof etc.
Specification
| UTR Model |
Cover Material (Polyurethane) |
Tube sheet H.D(m²) |
Top cover O.D(m²) |
Bottom cover O.D(m²) |
Filtration area/(m²) |
Filtration area/(m²) |
| HD/LU 133 | Polyurethane | Φ133 | Φ142 | Φ120 | 2.0(m²) | 4.0(m²) |
| HD/LU 153 | Polyurethane | Φ153 | Φ160 | Φ140 | 2.1(m²) | 4.3(m²) |
| HD/LU 159 | Polyurethane | Φ159 | Φ169 | Φ145 | 2.3(m²) | 4.6(m²) |
| HD/LU 162 | Polyurethane | Φ162 | Φ169 | Φ150 | 2.3(m²) | 4.6(m²) |
| Our products have been upgraded with longer cartridges for choice. | ||||||
The length of filter cartridge can be customized according to the customers' working conditions. Please consult HD application technicians about details.
